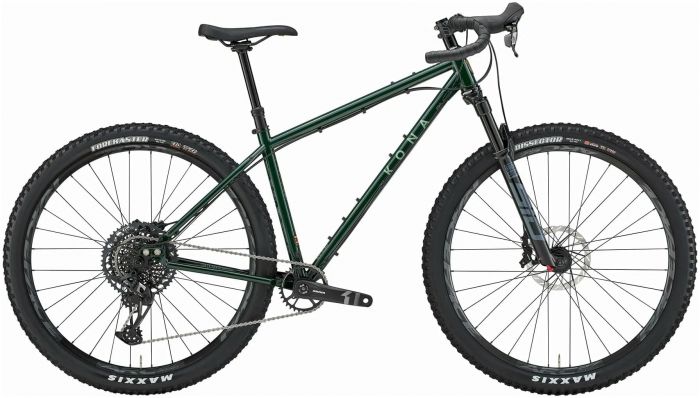

Kona Lbf 2026 Bike
| Brand | Kona |
|---|---|
| Colour | Gloss Emerald |
| Suitable for | Everyone |
| Wheel Size | 29-inch |
Until now, the Legend of Big Fork sat in that space between myth and possibility. Some treated it as a fun local legend who left traces of big tyre prints and slashed foliage; others swear they'd seen it in the wilderness before, and bike nerds in the comment section remained skeptical of its reality.
The LBF has been here the whole time, dwelling in Kona's most memorable underbiked adventures or Kona's daydreams of overforking Kona's gravel bike for that one strange adventure. There's a new era of drop bar ready to emerge from the depths of the PNW. Some would say it's already here, but for those who simply don't believe: Kona see what Kona want to see and don't see what Kona are not prepared to see. The question is, are you ready for the power of the LBF myth to give your expedition meaning?
The LBF is the rowdiest drop-bar machine to escape the minds of Kona and the wilderness of the PNW. Turning myth into metal, its built for riders who push drop bars way past their comfort zone. Steel is real again and a 100mm suspension fork tames the rough stu!, while a custom-for-Kona pairing of SRAM Apex Eagle levers and powerful G2 calipers delivers MTB-level braking control- without sacrificing drop-bar comfort Burly Raceface rims wrapped in wider, grippy Maxxis tyres keep you planted when the trails turn wild. From chunky backcountry descents to barely-there singletrack, the LBF is ready for the most unhinged adventures only whispered about.
- Reynolds 520 Butted Chromoly frame
- Rockshox SID 3P 100mm travel fork
- SRAM Apex Eagle lever w/ G2 calipers, hydraulic disc brakes
- TransX RAD+ dropper post w/ DL butterfly lever
- Ritchey Beacon Comp handlebar w/ Comp Trail stem
- Maxxis Dissector 29 x 2.4" fr / Forekaster 29 x 2.35" rr tyres
- Raceface ARC Asymmetric 27mm rims
Specification
Frame and Forks
- Frame: Reynolds 520 Butted Chromoly
- Forks: Rock Shox SID Base 100mm
- Headset: FSA No.9
Drivetrain
- Crankset: SRAM Eagle X1
- Chainrings: 32 Tooth
- Bottom Bracket: SRAM DUB 73mm
- Rear Derailleur: SRAM Apex Eagle 12 Speed
- Cassette: SRAM Eagle 10-52 Tooth 12 Speed
- Chain: SRAM NX Eagle
Braking/Shifting
- Shifters: SRAM Apex 12 Speed
- Brakes: SRAM G2 4P
- Front Rotor: SRAM HS2 180mm
- Rear Rotor: SRAM HS2 180mm
- Brake Levers: SRAM Apex
Wheels
- Rims: RaceFace ARC 29"
- Front Hub: Formula 110 x 15mm
- Rear Hub: Formula 148 x 12mm
- Spokes: Stainless Black 14 Gauge
- Front Tyre: Maxxis Dissector TR 29 x 2.4"
- Rear Tyre: Maxxis Forekaster EXO TR 29 x 2.35"
Finishing Kit
- Handlebars: Ritchey Beacon Comp
- Grips: Kona Bar Tape
- Stem: Ritchey Comp Trail
- Seatpost: TranzX Dropper +RAD Internal 31.6mm
- Seat Clamp: Kona Clamp
- Saddle: WTB Volt
- Pedals: Not Included
