You'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that functions brilliantly should also have an elegant form. To that end, we routed cables internally – including provision for a dropper seatpost. Mounting points include compatibility with our Semi-Integrated Carrier 2.1 and a flat mount kickstand, while a tapered head tube ensures confidence-inspiring handling and the replaceable gear hanger means it's easy to get up and running again in the event of a knock to the derailleur. We sweat the detail, so you can just pedal...

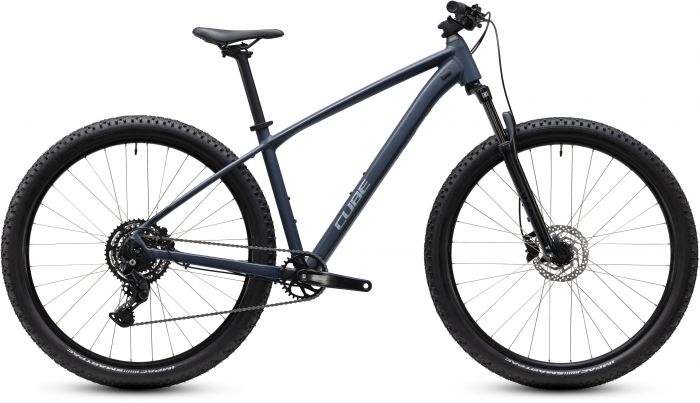

A great bicycle opens your horizons, because if you can ride anywhere the world is your oyster. The Aim ONE's suspension fork, grippy tyres and dependable disc brakes give you the comfort and control to explore wherever you like. For work, for play, for anyone.
Specifications
Frame and Forks
- Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- Forks: SR Suntour XCS, 100mm
- Headset: Cube FPH868, Semi-Integrated
Drivetrain
- Crankset: Shimano Cues FC-UT400, 32T
- Bottom Bracket: Thun Paso-ML, 73mm BSA
- Rear Derailleur: Shimano Cues RD-U4000-GS, 9-Speed
- Cassette: Shimano Cues CS-LG300, 11-46T
- Chain: KMC xGlide
Braking / Shifting
- Shifters: Shimano Cues, SL-U4010, Rapidfire Plus
- Brake System: Shimano BR-MT200/UR300, Hydraulic, Disc Brake, PM/FM (160/160)
Wheels
- Wheelset: ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
- Tyres: Cube MTB, Draht, 2.25
Finishing Kit
- Handlebars: Cube Rise Trail Bar, 680mm
- Grips: ACID Icon
- Stem: Cube Performance Stem, 31.8mm
- Seatpost: Cube Performance Post, 30.9mm
- Saddle: ACID Venec Lite
- Pedals: Cube PP MTB
