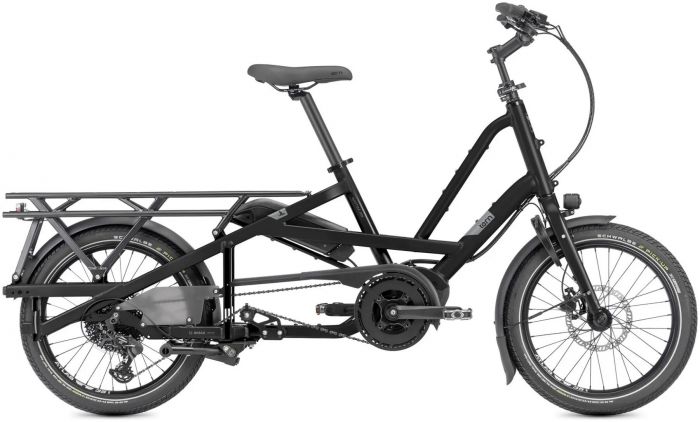

Tern Quick Haul Long D9 Performance Electric Cargo Bike
| Brand | Tern |
|---|---|
| Battery | 400Wh |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
Quick Haul Long D9 Highlights
- Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
- Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
- Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
- Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)
- Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
- Create customized setups using our wide range of kid & cargo-carrying accessories
- Adjusts without tools to fit riders 155 - 190 cm (5'1" - 6'3"), weighing up to 120 kg (265 lb)
- Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements
Specifications
Frame and Forks
- Frame: Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
- Fork: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
Drivetrain
- Crankset: Tern custom, forged 6061-AL crankarm, anti-drop chainring
- Rear Derailleur: Tektro custom for Tern, 1 x 9 speed
- Cassette: Tektro 11-42 Tooth, 9 speed
- Bottom Bracket: Motor integrated
- Chain: KMC for eBike, 9 speed
Braking/Shifting
- Brakes: Tektro hydraulic disc
- Brake Levers: Tektro hydraulic disc
- Gear Shifters: Shimano Deore, 1 x 10 Speed
Wheels
- Front Hub: Disc, aluminum
- Rear Hub: 9 speed, disc, aluminum, Boost
- Rims: Tern Atlas H, cargo
- Front Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
- Rear Tyre: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
- Spokes: Stainless steel
Finishing Kit
- Headset: TH, cartridge bearings
- Handlebar: Low riser ergo, 31.8, 6061-AL
- Stem: Speedlifter, adjustable, 3D forged stem, 31.8mm
- Grips: Velo ergonomic, lock-on
- Saddle: Velo Comfort
- Seat Post: 34.9mm, 6061-AL, micro-adjust clamp
- Seat Post Clamp: Tern Collar
- Pedals: Urban with non-slip surface
Extras
- Bell: Aluminum
- Chainguard: SKS Chainblade
- Kickstand: Atlas Kickstand, for cargo
- Front Light: 90 lux, StVZO approved
- Rear Light: Herrmans
- Fenders: SplashGuard, stainless hardware
- Rack(s): Atlas L, 90 kg (198 lb) capacity
Electric Power
- Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack 400
- Display: Bosch Purion, 4 mode selectable, walk assist
- Charger: 220V, 4A (EU)
