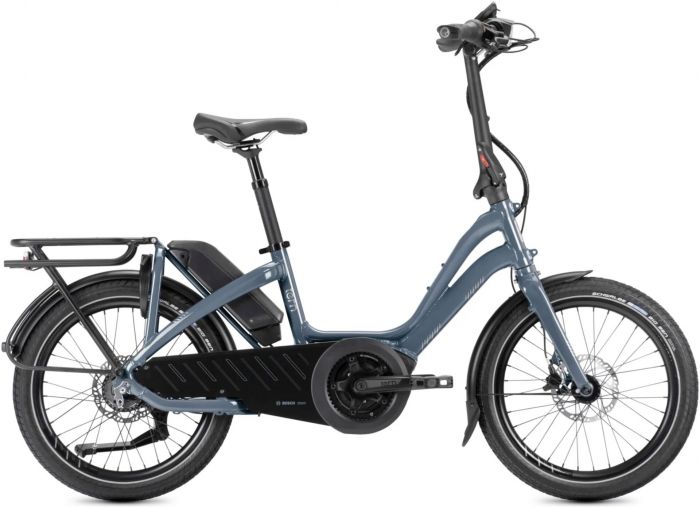

Tern NBD S5i Electric Folding Bike
| Brand | Tern |
|---|---|
| Battery | 500Wh |
| Colour | Gloss Metallic Blue |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
What Makes it a S5i?
- Bosch Performance Line motor provides up to 65 Nm of torque and 300% support
- Bosch PowerPack 500 powers longer trips, commutes, and journeys
- Gates belt drive for clean, quiet, maintenance-free operation
- Shimano Nexus INTER-5E internal hub
- Magura MT4 hydraulic disc brakes for superior stopping power—even when carrying a passenger and riding fast
NBD Highlights
- Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147 - 190 cm (4'10" - 6'3")
- Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
- Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight
Specifications
Frame and Forks
- Frame: Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140kg
- Fork: Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140kg
Drivetrain
- Crankset: Tern NBD custom, Gates CDX CNC machined beltring
- Cassette: Gates CDX, precision CNC machined cog
- Chain: Gates Carbon Drive CDX belt
Braking/Shifting
- Brakes: Magura MT4, hydraulic disc
- Brake Levers: Magura MT4, hydraulic disc
- Gear Shifters: Shimano 5 speed
Wheels
- Front Hub: Shimano disc
- Rear Hub: Shimano Nexus INTER-5E
- Rims: Kinetix Comp, for disc
- Front Tyre: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
- Rear Tyre: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
- Spokes: Stainless steel
Finishing Kit
- Headset: Tern Flux by FSA, cartridge bearings, Physis integrated
- Handlebar: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350mm
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Grips: Velo ergonomic, lock-on
- Saddle: Tern Upright by Velo
- Seat Post: Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
- Seat Post Clamp: Tern Collar
- Pedals: MKS Platform, Tern custom design
Extras
- Bell: Aluminum
- Chainguard: Tern Custom, full chain cover
- Kickstand: URSUS, rear mount
- Front Light: Tern Valo Direct, 190 lumens
- Rear Light: Herrmans H-Trace, for eBike
- Fenders: SplashGuard, stainless hardware
- Rack(s): Atlas V Rack, integrated 8 point mounting, 27kg capacity
Electric Power
- Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack 500
- Display: Bosch Intuvia, 4 mode selectable, walk assist
- Charger: 100-240V, 2A
