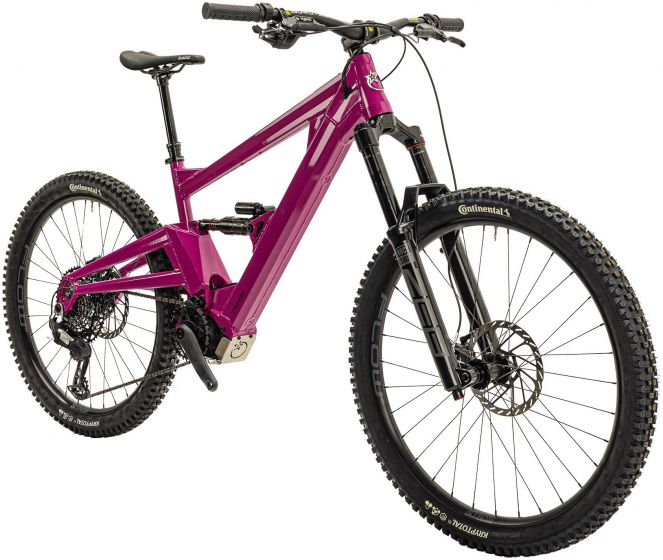

Orange Phase Avinox RS Electric Bike

More Information
Brand	Orange
Battery	800Wh
Suitable for	Everyone
Wheel Size	27.5-inch Rear, 29-inch Front

Situated in Halifax, West Yorkshire, Orange Bikes put their hearts and souls into their hand-fabricated mountain bike frames. Standing by their intrepid single pivot linkage design but also branching out into other areas of innovation and expertise, an Orange is a bike you can really count on.

Skip to the beginning of the images gallery

The Phase Avinox RS is Orange's mid-tier build of their flagship electric mountain bike, sharing the same UK-made 6061-T6 folded monocoque aluminium frame as the rest of the range with 160mm of travel front and rear and an MX wheel setup running a 29in front and 27.5in rear. Power comes from the Avinox M2S drive unit developed by DJI, rated at 130Nm with a 150Nm boost peak and fed by a fixed 800Wh battery, with a 2in OLED touchscreen display set into the top tube. Geometry runs a 64 degree head angle, 76 degree effective seat angle and 478.6mm reach in size large, paired with a 443mm chainstay and a reduced offset fork. The RS build pairs RockShox Zeb Select+ and Super Deluxe Select+ suspension with SRAM Eagle 90 Transmission, SRAM Maven Silver brakes and Hope Pro 5 hubs laced to Stan's Flow S2 rims. Every frame is designed, welded and assembled at Orange's own facility in Halifax and carries a 5 year warranty with limited lifetime crash replacement.

Features

Frame designed, built and manufactured in the UK
5 year warranty with limited lifetime crash replacement
Avinox (DJI) drive unit
Avinox (DJI) 800Wh battery
29" front, 27.5" rear MX wheels
UDH dropout
Custom aluminium bashguard
Water bottle bosses under the top tube
Zero-stack tapered head tube
Reduced offset fork
Shorter seat tube sizing for longer dropper compatibility
Trunnion mount 205 x 65mm rear shock with bearing eyelet option at the shaft end
Asymmetric rear triangle for increased vertical stiffness with retained lateral compliance

Specifications

Frame and Forks

Frame: 6061-T6 Monocoque UK Formed Custom Aluminium Tubing, MX 29/27.5", 160mm Rear Travel
Forks: RockShox Zeb Select+ 29 x 160mm, 44mm Offset
Rear Shock: RockShox Super Deluxe Select+ 205 x 65mm Trunnion Mount
Headset: Cane Creek ZS49/ZS56 Tapered
