Orange Phase Avinox Factory Electric Bike

More Information
Brand	Orange
Battery	800Wh
Suitable for	Everyone
Wheel Size	27.5-inch Rear, 29-inch Front

Situated in Halifax, West Yorkshire, Orange Bikes put their hearts and souls into their hand-fabricated mountain bike frames. Standing by their intrepid single pivot linkage design but also branching out into other areas of innovation and expertise, an Orange is a bike you can really count on.

Skip to the beginning of the images gallery

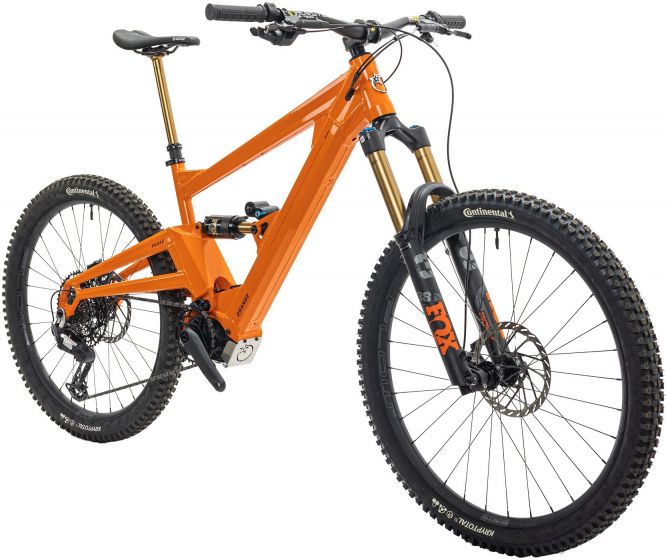

Orange Phase Avinox Factory Electric Bike

The Phase Avinox Factory is Orange's flagship electric mountain bike, built around a UK-made 6061-T6 folded monocoque aluminium frame with 160mm of travel front and rear and an MX wheel setup running a 29in front and 27.5in rear. Power comes from the Avinox M2S drive unit developed by DJI, rated at 130Nm with a 150Nm boost peak and fed by a fixed 800Wh battery, with a 2in OLED touchscreen display set into the top tube. Geometry runs a 64 degree head angle, 76 degree effective seat angle and 480mm reach in size large, paired with a 448mm chainstay and a reduced offset fork. The Factory build gets Fox 38 Factory and Float X2 Factory suspension, SRAM Eagle 90 Transmission, SRAM Maven Silver brakes and Hope Pro 5 hubs laced to Stan's Flow MK4 rims. Every frame is designed, welded and assembled at Orange's own facility in Halifax and carries a 5 year warranty with limited lifetime crash replacement.

Features

Frame designed, built and manufactured in the UK
5 year warranty with limited lifetime crash replacement
Avinox (DJI) drive unit
Avinox (DJI) 800Wh battery
29" front, 27.5" rear MX wheels
UDH dropout
Custom aluminium bashguard
Water bottle bosses under the top tube
Zero-stack tapered head tube
Reduced offset fork
Shorter seat tube sizing for longer dropper compatibility
Trunnion mount 205x65 rear shock with bearing eyelet option at the shaft end
Asymmetric rear triangle for increased vertical stiffness with retained lateral compliance

Specifications

Frame and Forks

Frame: 6061-T6 Monocoque UK Formed Custom Aluminium Tubing, MX 29/27.5, 160mm Rear Travel
Forks: Fox 38 Factory Grip X2 29 x 160mm, 44mm Offset
Rear Shock: Fox Float X2 Factory 205 x 65mm Trunnion Mount
Headset: Cane Creek ZS49/ZS56 Tapered
