Cube AMS Hybrid 177 C:62 Super TM 600X 2027 Electric Bike

More Information
Brand	Cube
Battery	600Wh
Colour	Artichoke / Lime
Suitable for	Everyone
Wheel Size	27.5-inch Rear, 29-inch Front

A company Based in Waldershof Germany that specialises in high quality mountain and road cycles. Their range branches across all disciplines, including a large selection of children's bikes. They have a devoted R+D team and premium test facilities for the best end results.

Skip to the beginning of the images gallery

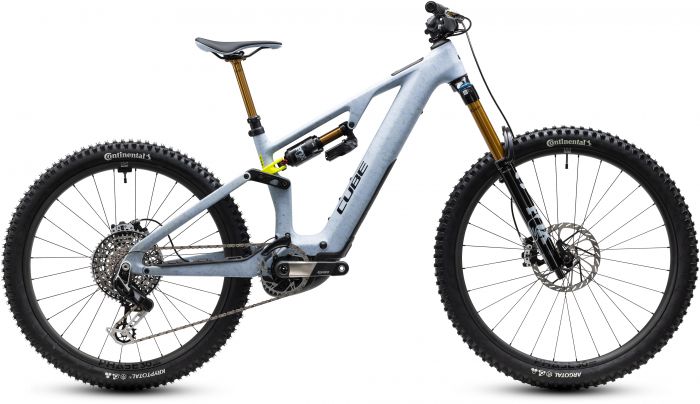

Cube AMS Hybrid 177 C:62 Super TM 600X 2027 Electric Bike

We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and fitted with the powerful Bosch CX-R motor, it features a built-in 600Wh PowerTube battery for the ideal balance of weight and range. We've designed the geometry and kinematics to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, while an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

When your riding speaks volumes, you don't need a bike that shouts. The AMS Hybrid 177 C:62 Super TM's artichoke'n'lime is all about that vibe, combining a spiderweb-like pattern over a very light grey base with hints of bright lime. With Fox Factory suspension, Bosch CX-R power and premium components, its performance speaks for itself.

Specifications

Frame and Forks

Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
Forks: Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
Headset: Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Rear Shock: Fox Float X2 Live Valve Neo Factory, 230x65mm, High/Low Speed Rebound, Low Speed Compression, Firm Mode Adjust, Kashima Coated
Shock Hardware: Front: 30x8mm, Rear: w/o DU-Bushing 15 mm

Drivetrain

Crankset: Race Face ERA E-MTB, 36T
Chainguide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Rear Derailleur: SRAM XX Eagle AXS™ Transmission, 12-Speed
Cassette: SRAM XS-1297, 10-52T
Chain: SRAM XX Eagle Transmission

Braking / Shifting

Shifters: SRAM AXS™ Pod Ultimate Controller
Brake System: SRAM Maven Ultimate, Hydraulic Disc Brake (200/200)

Wheels

Wheelset: Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front Tyre: Conti Argotal, Enduro SuperSoft, Tubeless Ready, 2.4
Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
