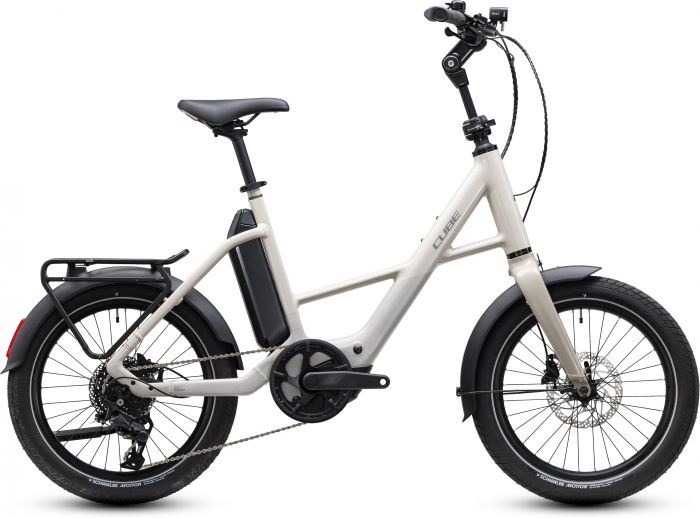

Cube Compact Hybrid 540 2027 Electric Bike
| Brand | Cube |
|---|---|
| Battery | 540Wh |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
Sometimes the simplest solutions are the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong, but it also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There's a long 1.5in head tube for accurate, safe steering and an integrated rear carrier for all your essentials. Up front, the HIC interface allows the addition of a compatible ACID front carrier and accessories. The powerful Bosch Performance drive unit is powered by a 540Wh battery, which is tucked out of the way of both luggage and rider. Bosch's Smart System also gives you complete control, accessed via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. It's a bike for commuting, for popping to the shops, for camping, for exploring. For you.
A great bike makes your life easier, and that's just what we had in mind with the Compact Hybrid. Bosch Smart System power, compact frame design and a full complement of accessories plus a wide gear range make for the ideal everyday companion – from holidays to commuting.
Specifications
Frame and Forks
- Frame: Aluminium Superlite, Gravity Casting Technology, Comfort Ride Geometry, Seatstay-Integrated Carrier
- Forks: Aluminium Rigid Fork, 20"
- Headset: Acros Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Drivetrain
- Crankset: ACID Trekking Hybrid, 44T
- Rear Derailleur: Shimano Cues RD-U4010, 9-Speed
- Cassette: Shimano CS-LG300, 11-36T
- Chain: KMC eGlide
Braking / Shifting
- Shifters: Shimano Cues SL-U4010- Rapidfire-Plus
- Brake System: Shimano BR-MT200, Hydraulic Disc Brake (180/160)
Wheels
- Rims: ACID EX30, 32H, Disc, Tubeless Ready
- Front Hub: Shimano HB-QC300, QR, Centerlock
- Rear Hub: Shimano FH-QC300-HM, QR, Centerlock
- Tyres: Schwalbe Motion Super Moto-X, Double Defense, 62-406
Finishing Kit
- Handlebars: Cube Comfort Trail Bar, 680mm
- Grips: ACID Travel Comfort
- Stem: BySchulz Speedlifter Twist Pro 2 SDS T15
- Seatpost: Cube Performance Post, 27.2mm
- Saddle: ACID Sequence 160 Pro Bubble Foam
- Pedals: ACID PP Trekking
Electric Power
- Motor: Bosch Drive Unit Performance Line 75Nm (BDU34)
- Battery: Bosch PowerPack 540
- Charger: Bosch 2A
- Remote: Bosch Purion 200 with Integrated Display
Extras
- Carrier: ACID 20" Seatstay-Integrated Carrier, RILink, SM-Link
- Mudguard: ACID 62 IC-Mount
- Front Light: ACID Front Light PRO-E 80 X-Connect, 12V, DC
- Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
- Prop Stand: ACID FM Pure XS
- Bell: Easy Bell
