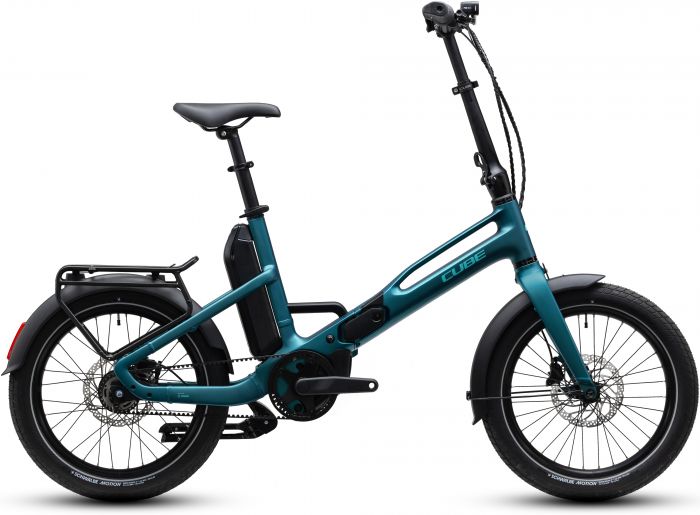

Cube Fold Hybrid Deluxe 540 2027 Electric Bike
| Brand | Cube |
|---|---|
| Battery | 540Wh |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
Our foldable Bosch e-bike already set the benchmark for flexibility, mobility and functionality. But now it also features an improved folding mechanism, a more ergonomic carry handle, HIC interface for easy attachment of front-mounted carriers and accessories, and a neatly integrated rear carrier. It's easy to store or transport, so it can go wherever you need it to go. The 540Wh battery sits neatly behind the seat tube, and Bosch's Smart System gives you the control you need via the eBike Flow app. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height, and we included mudguards, a really stable kickstand and lights too. It's ready for anything.
The Fold Hybrid Deluxe is its own mini urban transport revolution – a compact, agile, go-anywhere, take-anywhere two-wheeled solution for everyone. Powered by Bosch and with incredibly neat Cube design, it's as easy to fold, carry and store as it is to ride. You'll wonder how you ever managed without one.
Specifications
Frame and Forks
- Frame: Aluminium Superlite, Comfort Ride Geometry, Seatstay-Integrated Carrier, Integrated Folding Technology, Carrying Handlebar, Slider Dropout
- Forks: Aluminium Rigid Fork, 20"
- Headset: Acros Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Drivetrain
- Crankset: ACID Trekking Hybrid, 46T
- Sprocket: Gates CDX Shimano Nexus 28T
- Belt: Gates CDC
Braking / Shifting
- Shifters: Shimano Nexus SL-C7000-5, Revoshift
- Brake System: Shimano BR-MT200, Hydraulic Disc Brake (180/180)
Wheels
- Rims: ACID EX30, 32H, Disc, Tubeless Ready
- Front Hub: Shimano HB-QC300, QR, Centerlock
- Rear Hub: Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
- Tyres: Schwalbe Motion Super Moto-X, Double Defense, 62-406
Finishing Kit
- Handlebars: Cube Comfort Trail Bar, 25.4mm
- Grips: ACID Travel Comfort Gripshift
- Stem: Cube Folding Stem, Adjustable Length, 25,4mm Clamp
- Seatpost: Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
- Saddle: ACID Sequence 160 Pro Bubble Foam
- Pedals: Folding Pedal, Aluminium
Electric Power
- Motor: Bosch Drive Unit Performance Line 75Nm (BDU34)
- Battery: Bosch PowerPack 540
- Charger: Bosch 2A
- Remote: Bosch Purion 200 with Integrated Display
Extras
- Carrier: ACID 20" Seatstay-Integrated Carrier, RILink, SM-Link
- Mudguard: ACID 62 IC-Mount
- Front Light: ACID Front Light PRO-E 80 X-Connect, 12V, DC
- Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
- Prop Stand: Two Leg Kickstand
- Bell: Easy Bell
