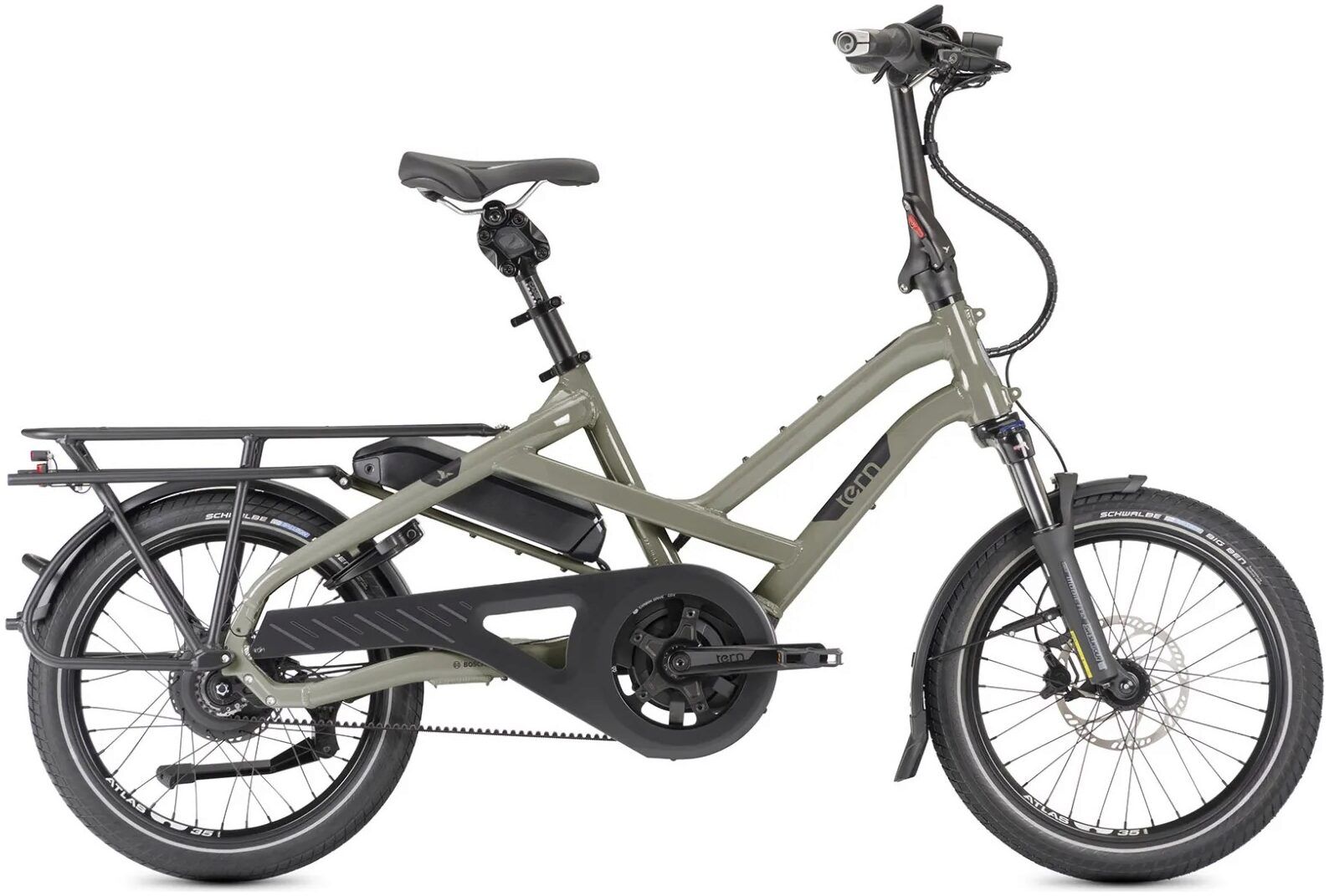

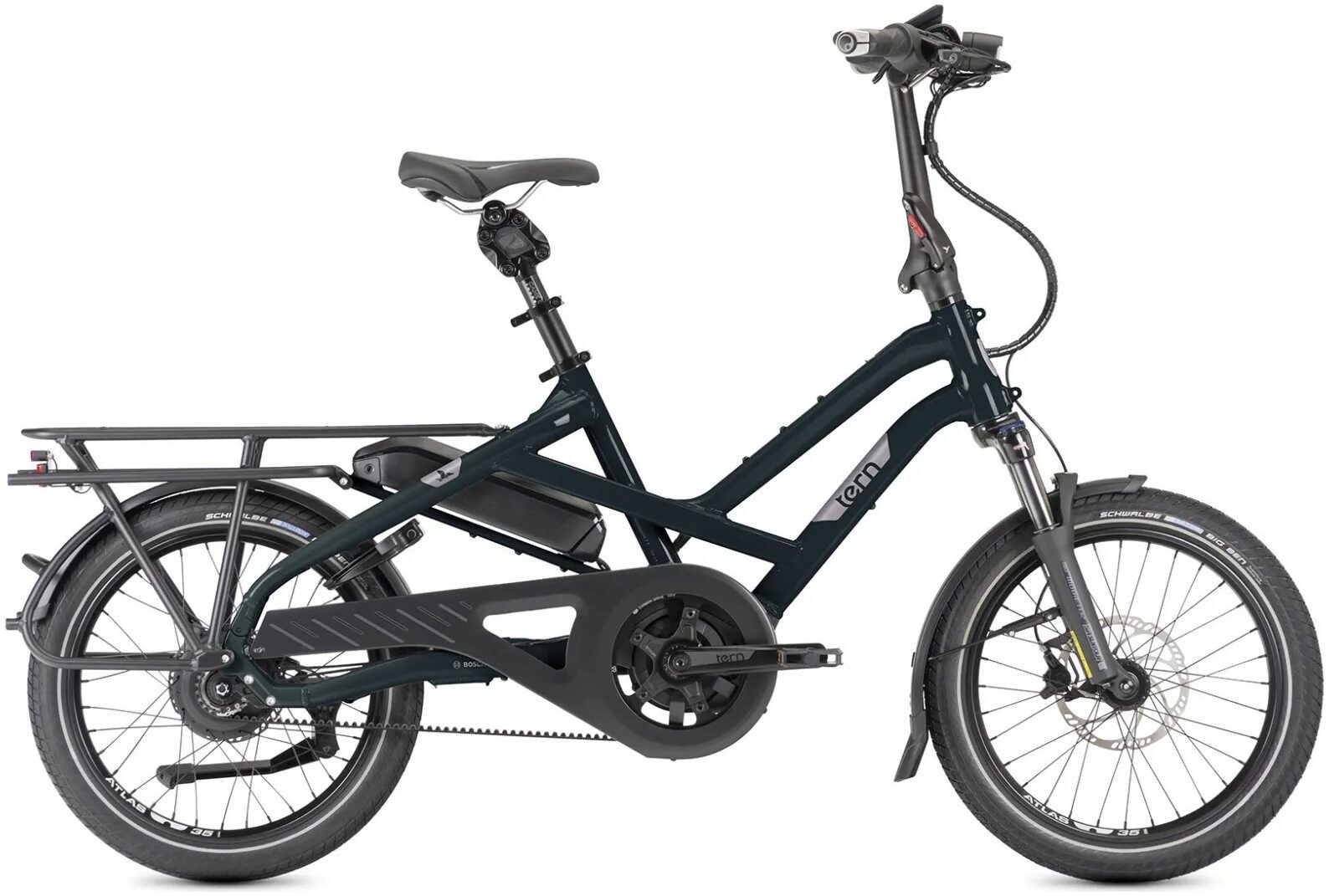

Tern HSD S00 Gen 2 Electric Cargo Bike
| Brand | Tern |
|---|---|
| Battery | 545Wh |
| Suitable for | Everyone |
| Wheel Size | 20-inch |
The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
What makes it an S00?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
- Kiox 300 color display that automatically activates eBike Lock when removed from the bike
- Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
- Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter
- Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
- Always-on RearStop Brake Light helps you safely signal stops
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Specifications
Frame and Forks
- Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
- Forks: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Drivetrain
- Crankset: Tern HSD custom, Gates CDX CNC machined beltring
- Cassette: Gates CDX, precision CNC machined cog
- Chain: Gates Carbon Drive CDX belt
Braking/Shifting
- Front Brake: Magura MT4, hydraulic disc, 180mm rotor
- Rear Brake: Magura MT4, hydraulic disc, 160mm rotor
- Brake Levers: Magura MT4 e-stop, hydraulic, with brake light sensor
Wheels
- Front Hub: Tern Atlas H, cargo wheel
- Rear Hub: Tern Atlas H, cargo wheel
- Rims: Tern Atlas H, wide 35mm
- Tyres: Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Finishing Kit
- Handlebars: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290mm
- Grips: Ergon
- Stem: Tern Andros, adjustable, forged construction, patented technology
- Seatpost: Cane Creek Thudbuster G4, Tern Telescope, 34.9 / 30.9mm
- Saddle: Tern Upright by Velo
Electric Power
- Motor: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
- Battery: Bosch PowerPack 545
- Display: Bosch Kiox 300 with LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
