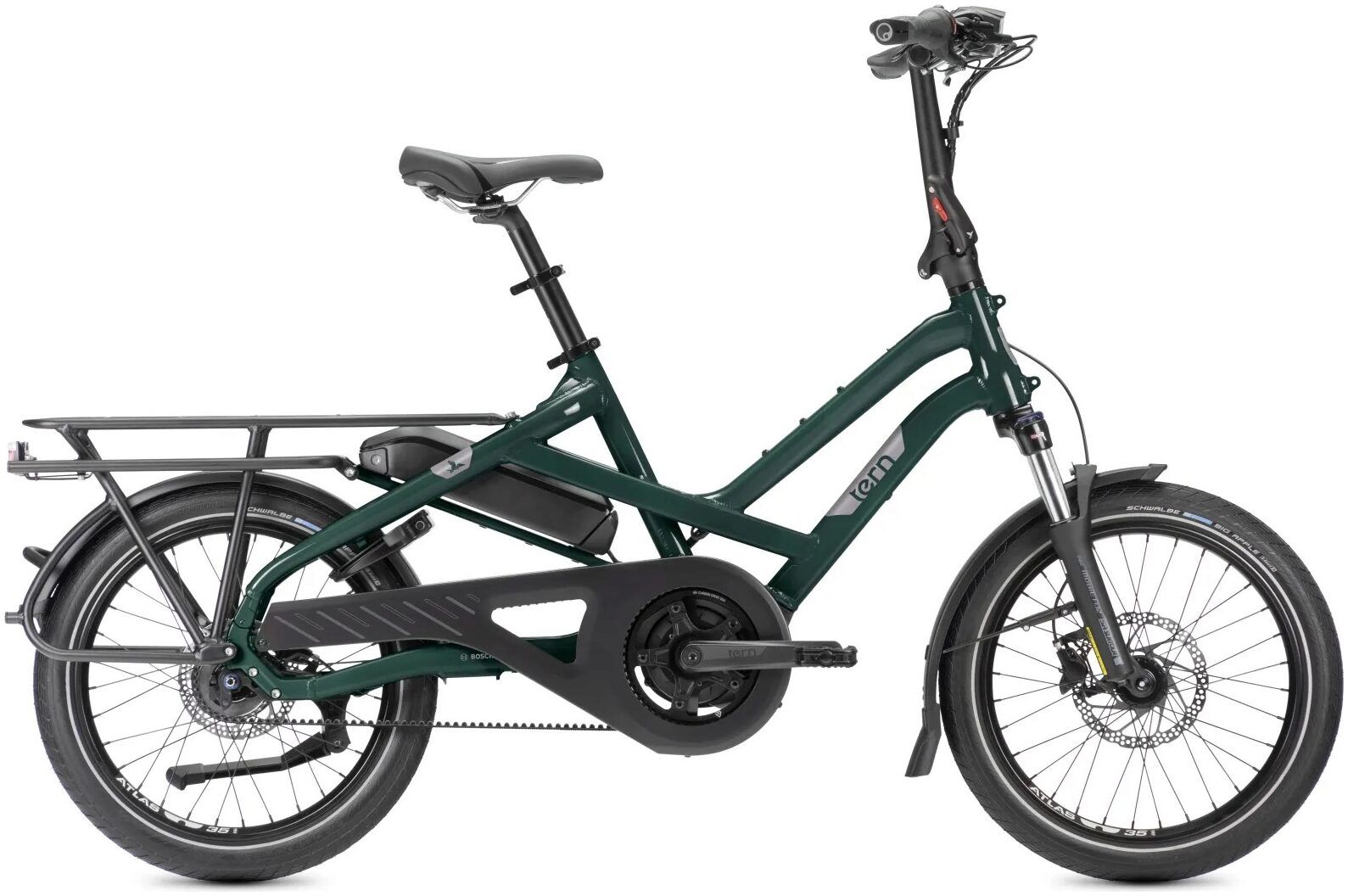

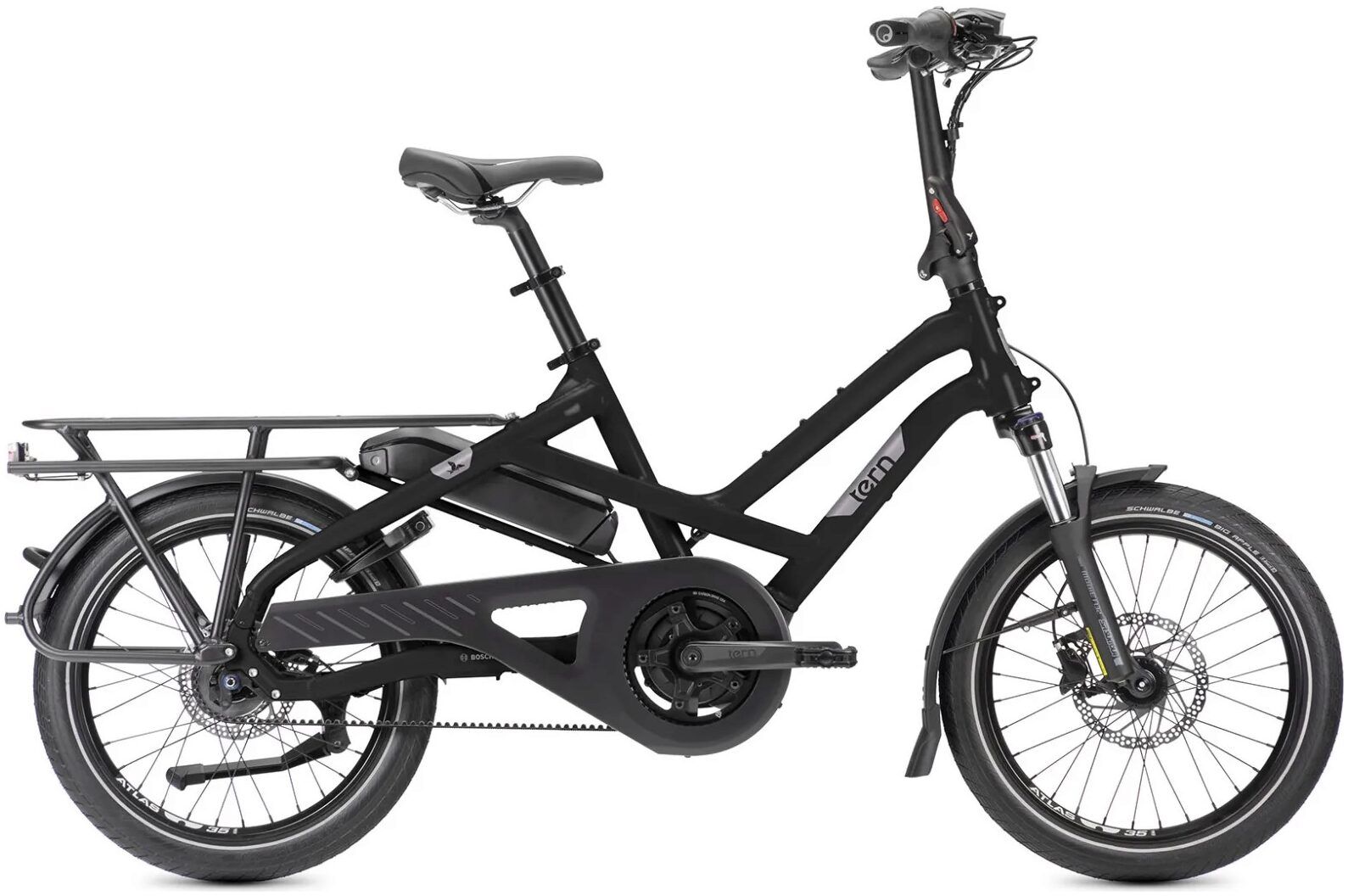

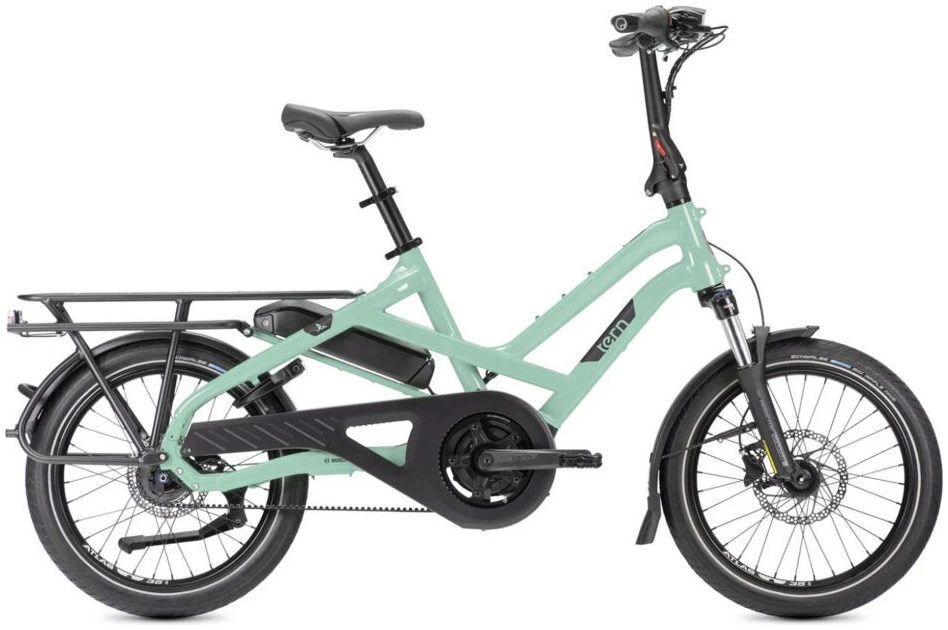

Tern HSD P5i Gen 2 Electric Cargo Bike

More Information
Brand	Tern
Battery	545Wh
Suitable for	Everyone
Wheel Size	20-inch

Tern specialise in folding bikes and folding electric bikes. Their prime motive other than to provide you with an efficient and user-friendly cycling experience is to help preserve the environment. You will find many well-considered features on all of their models and they are an absolute pleasure to ride.

Skip to the beginning of the images gallery

The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.

Why the HSD?

Stronger, Stiffer Frame

The HSD frame is now 15% stronger at the head tube and 39% at the bottom bracket. The enhanced stiffness means more stability under load, with less wobble or sway. A stiffer frame also means better handling, making it easier to maneuver in tight spaces, while helping to absorb vibrations and bumps on the road.

Heavy-Duty Rack Design

With a capacity rated to 80 kg (176 lb), the versatile HSD Atlas H Rack makes it easier to ride more and drive less. The rack easily fits a child seat, and is strong and spacious enough to accommodate an adult-passenger or larger cargo. Take on bigger tasks, carry larger passengers, and set off on more adventures.

Cargo-Carrying Versatility

Carry up to 20 kg (44 lb) of extra cargo by installing one of the many compatible cargo-carrying accessories onto the burly, frame-mounted Combo Mount. Switch between bags, baskets, and racks. Carry more cargo up front when there is a passenger behind. All cargo weight is carried by the frame, without interfering with steering.

Specifications

Frame and Forks

Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180kg
Forks: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180kg

Drivetrain

Crankset: Tern HSD custom, Gates CDX CNC machined beltring
Cassette: Gates CDX, precision CNC machined cog
Chain: Gates Carbon Drive CDX belt

Braking/Shifting

Front Brake: Shimano, hydraulic disc, 180mm rotor
Rear Brake: Shimano, hydraulic disc, 160mm rotor
Brake Levers: Shimano, hydraulic disc

Wheels

Front Hub: Tern Atlas H, cargo wheel
Rear Hub: Tern Atlas H, cargo wheel
Rims: Tern Atlas H, wide 35mm
Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex

Finishing Kit

Handlebars: Tern Sweep, 6061-AL, Tern Andros adapted
Grips: Ergon
Stem: Tern Andros, adjustable, forged construction, patented technology
Seatpost: Tern Telescope, 34.9 / 30.9mm, 2014-AL
Saddle: Tern Upright by Velo

Electric Power

Motor: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 545
Display: Bosch Intuvia 100 with LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
