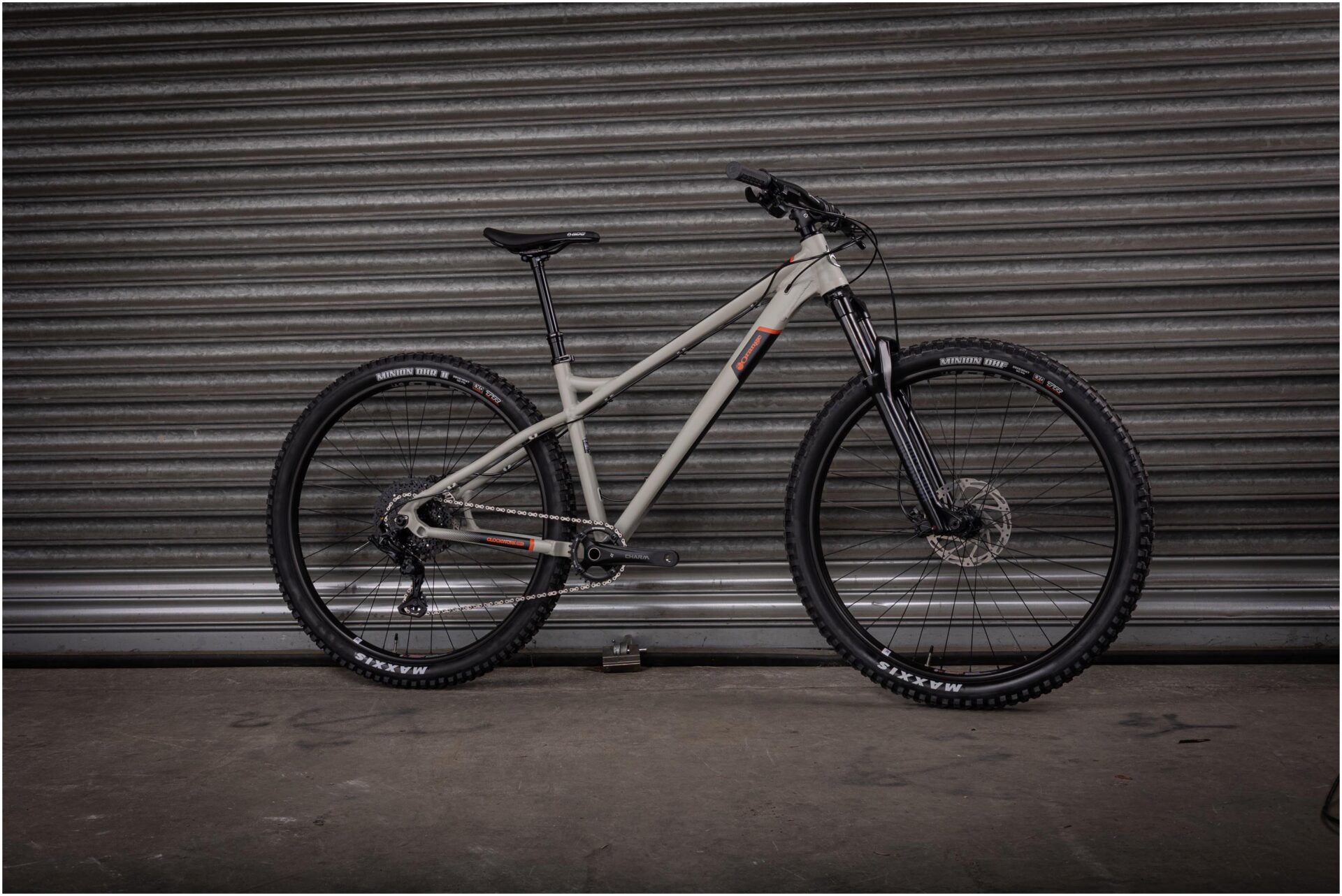

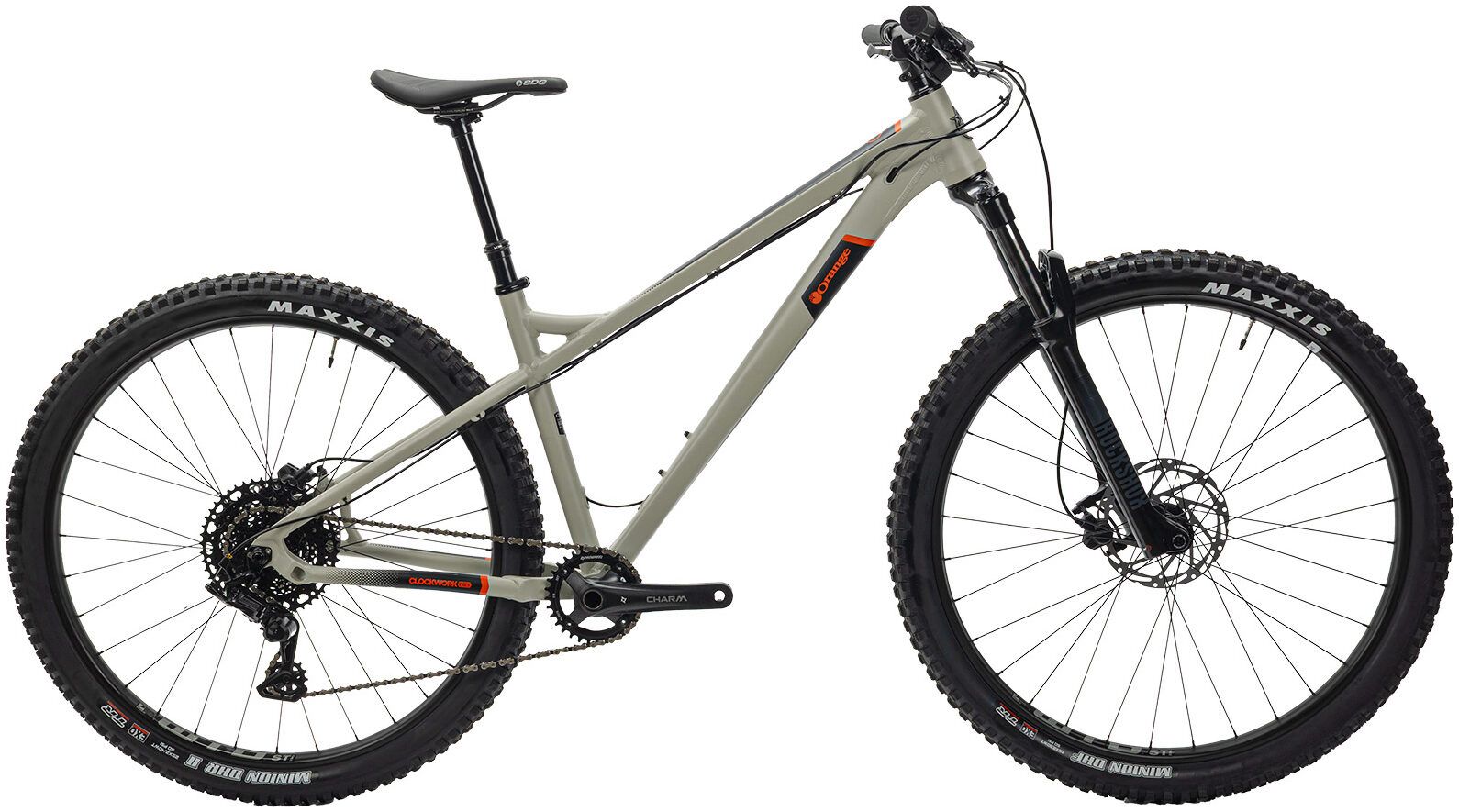

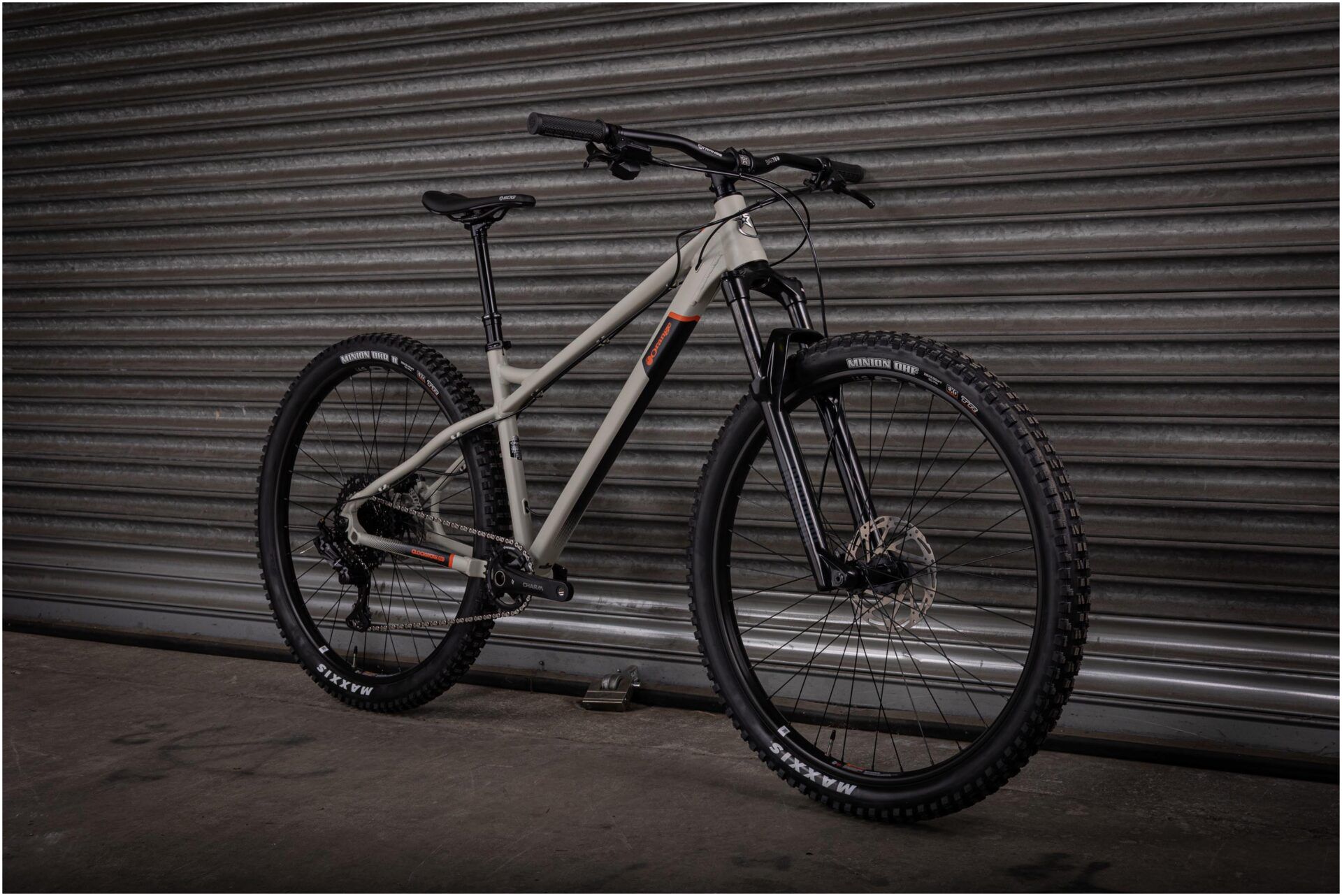

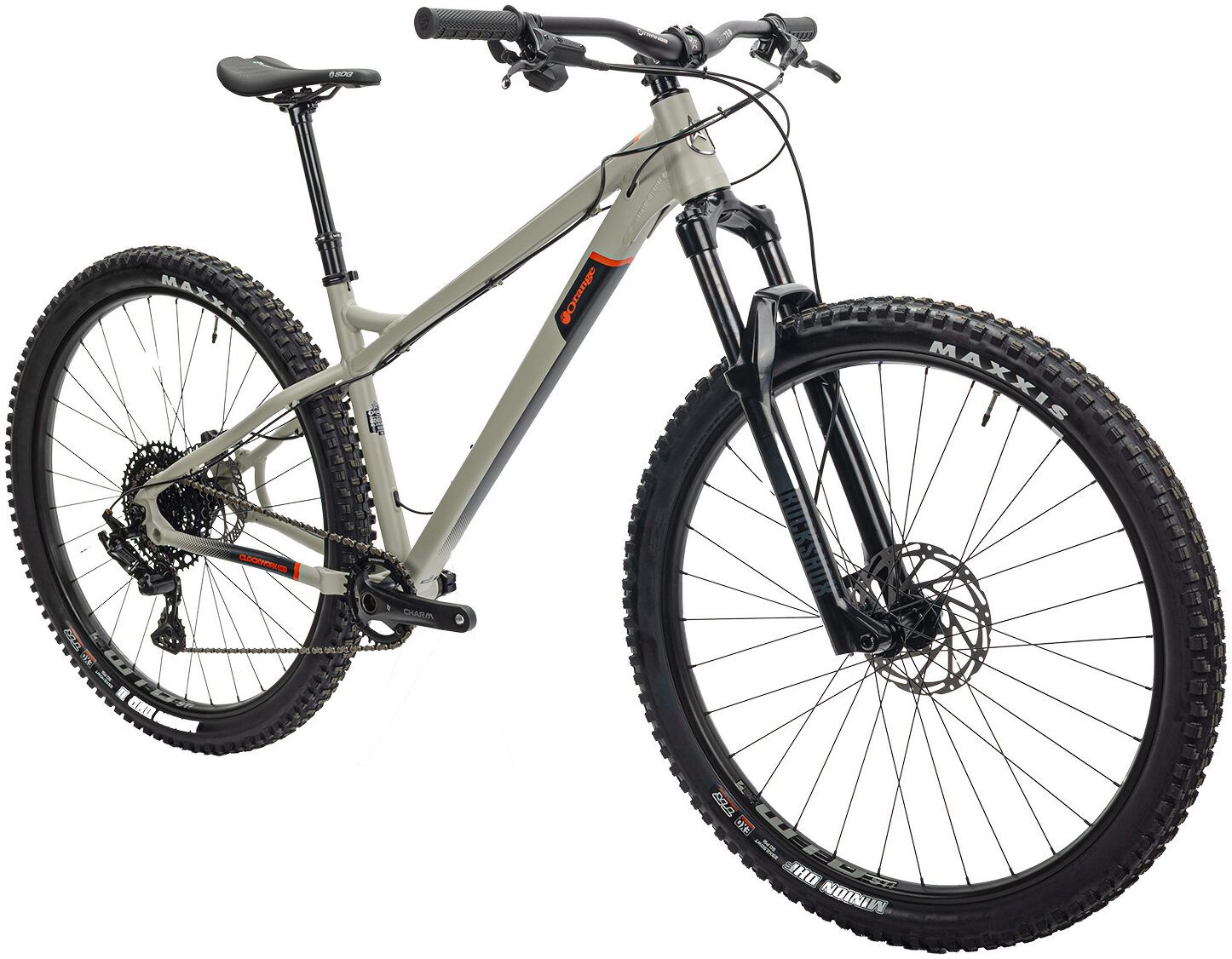

Orange Clockwork Evo Comp 29 2026 Bike

Specification

Frame and Forks

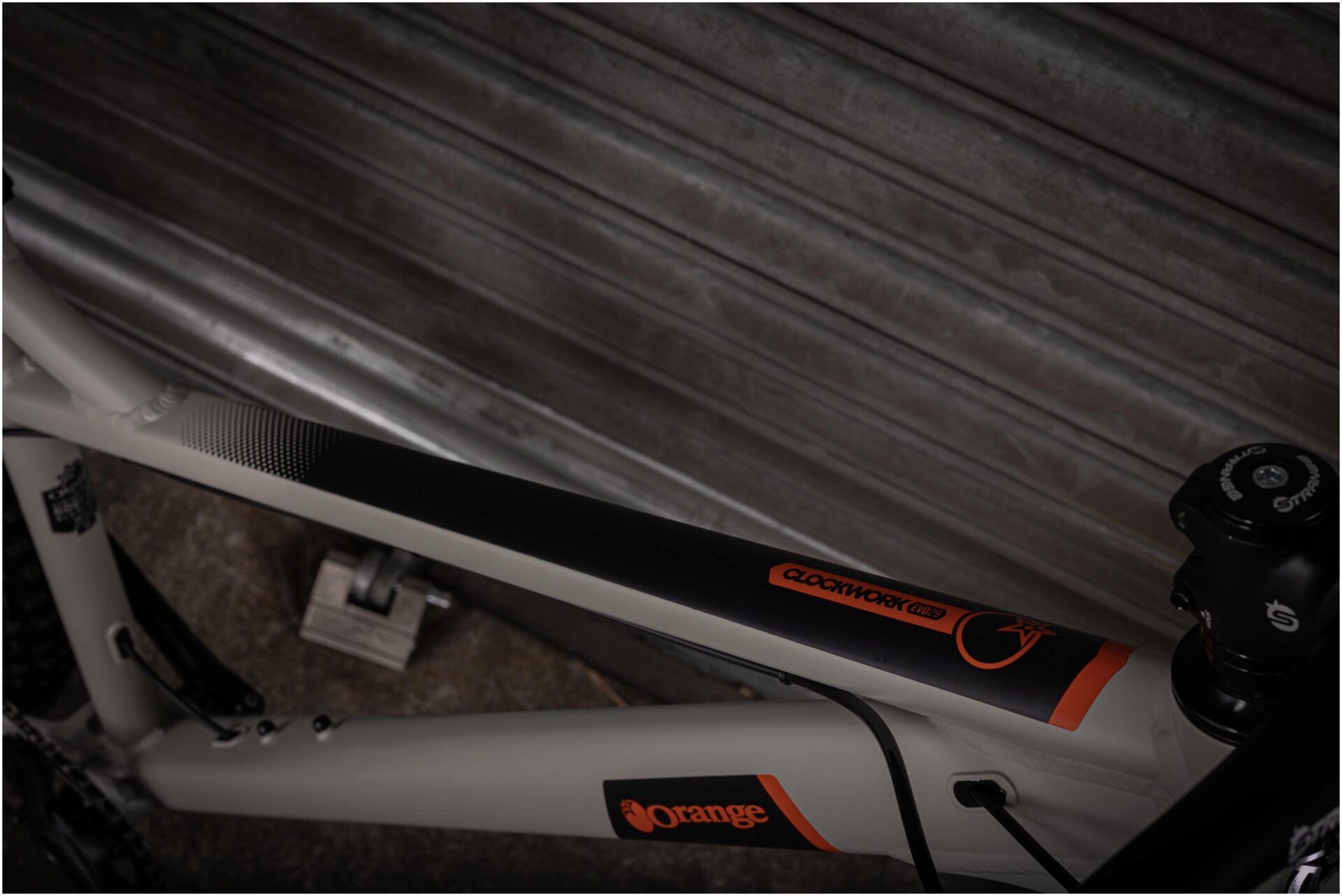

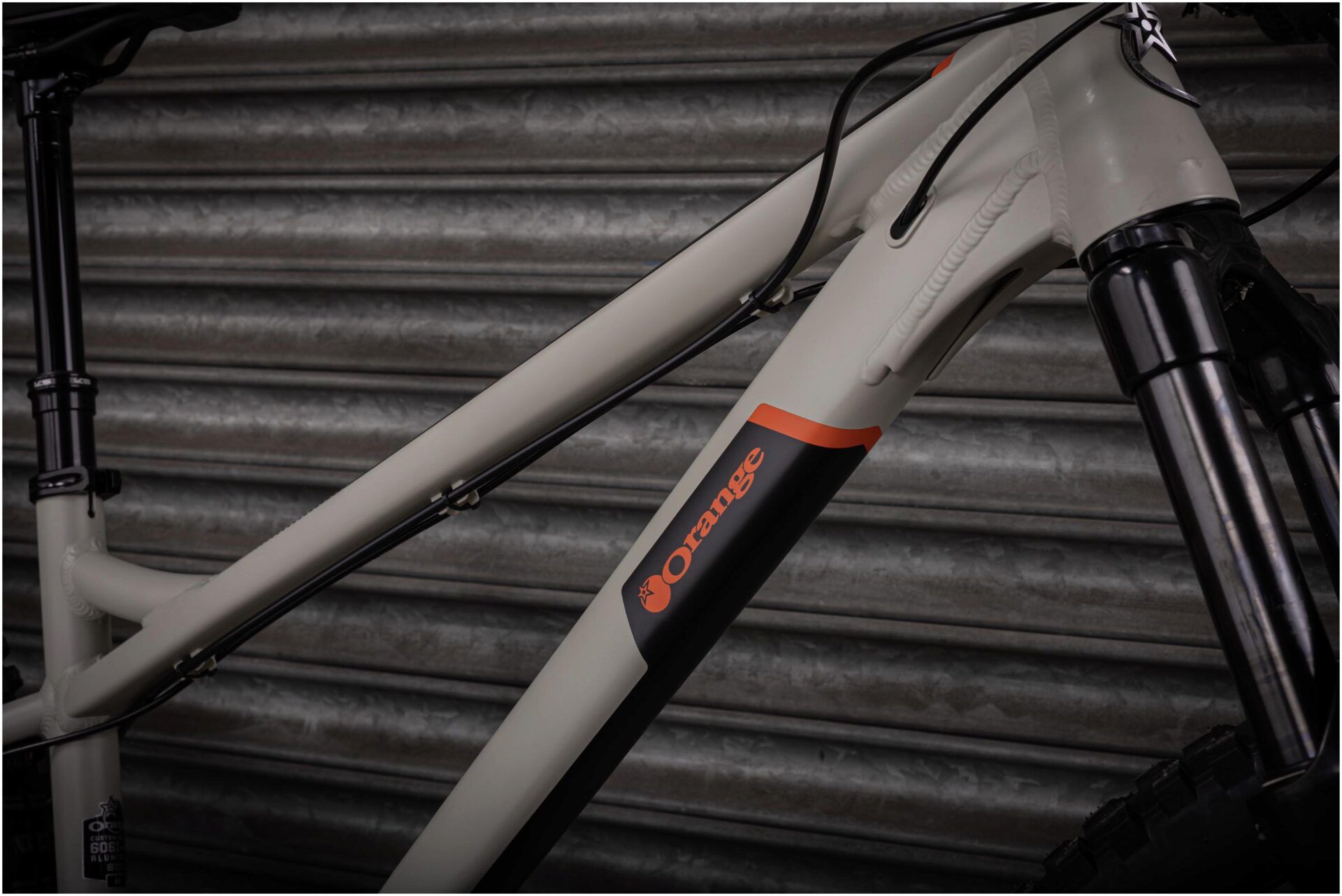

• Frame: 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29

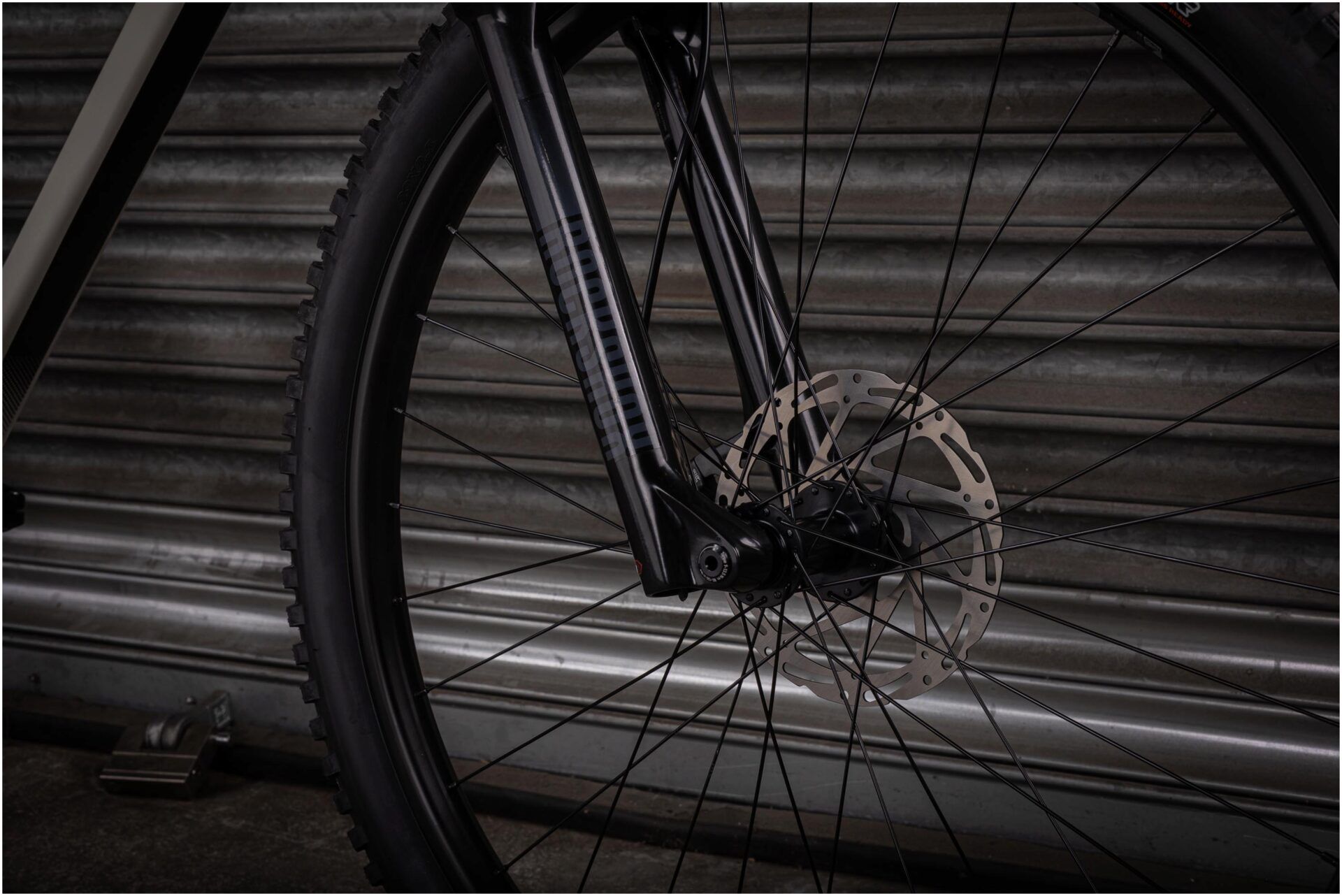

• Forks: RockShox Recon RL, 130x29, Air, Tapered, 42mm OS

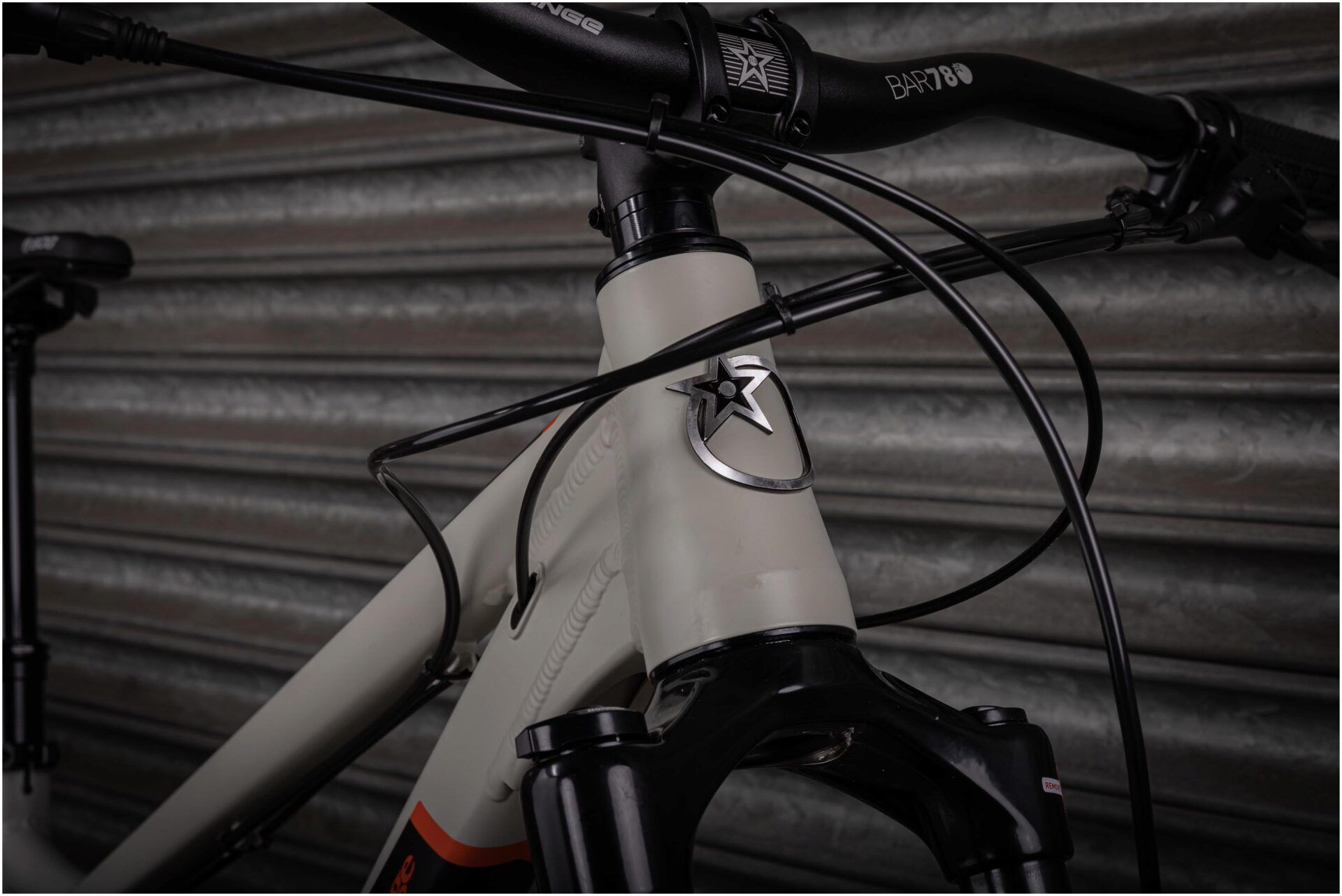

• Headset: FPD 44mm / 56mm zerostack
• Swingarm: Bolt Type Allen Key Head (12 x 148mm Hub)

Drivetrain

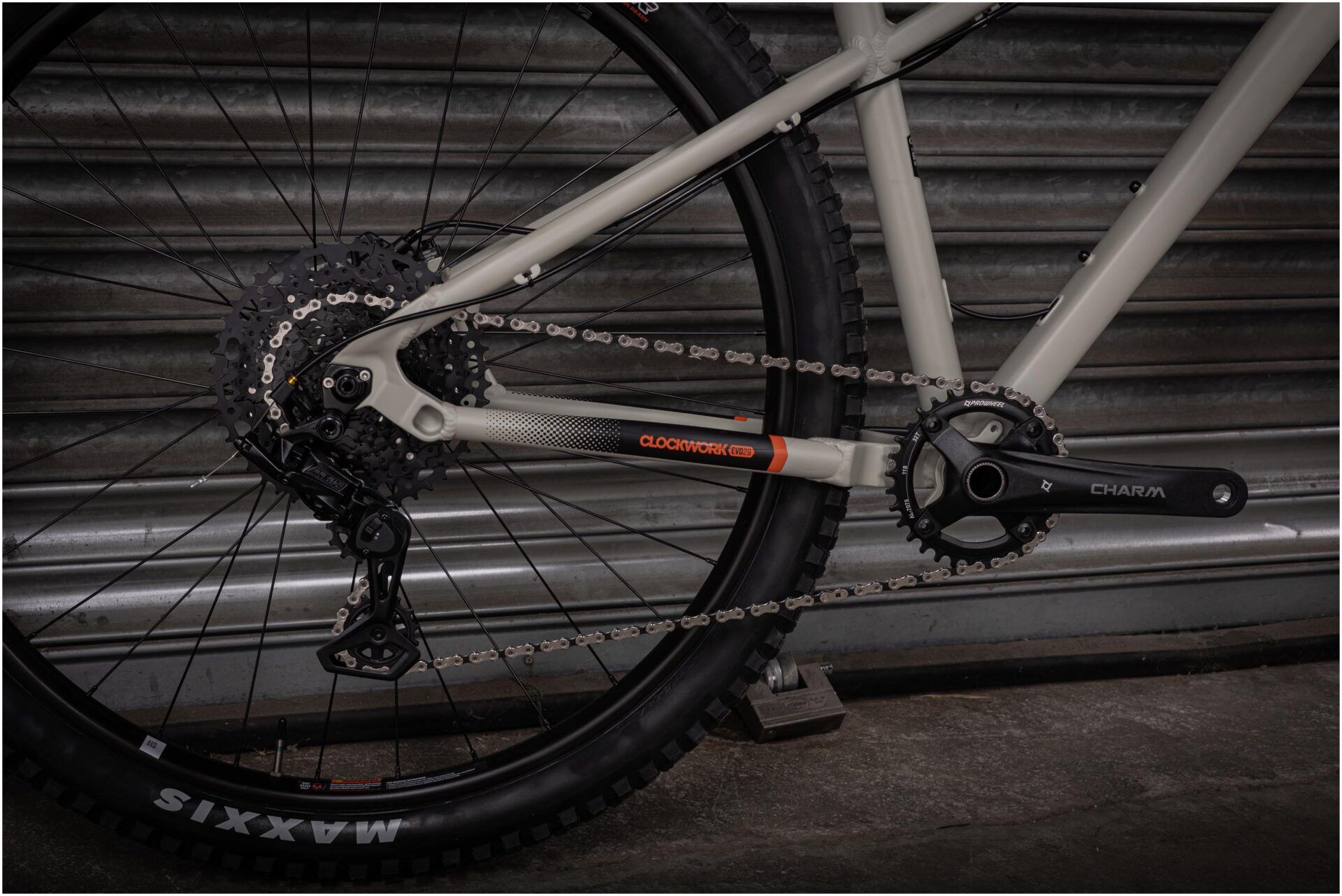

• Crankset: Prowheel Charm 32T 170mm
• Bottom Bracket: Prowheel

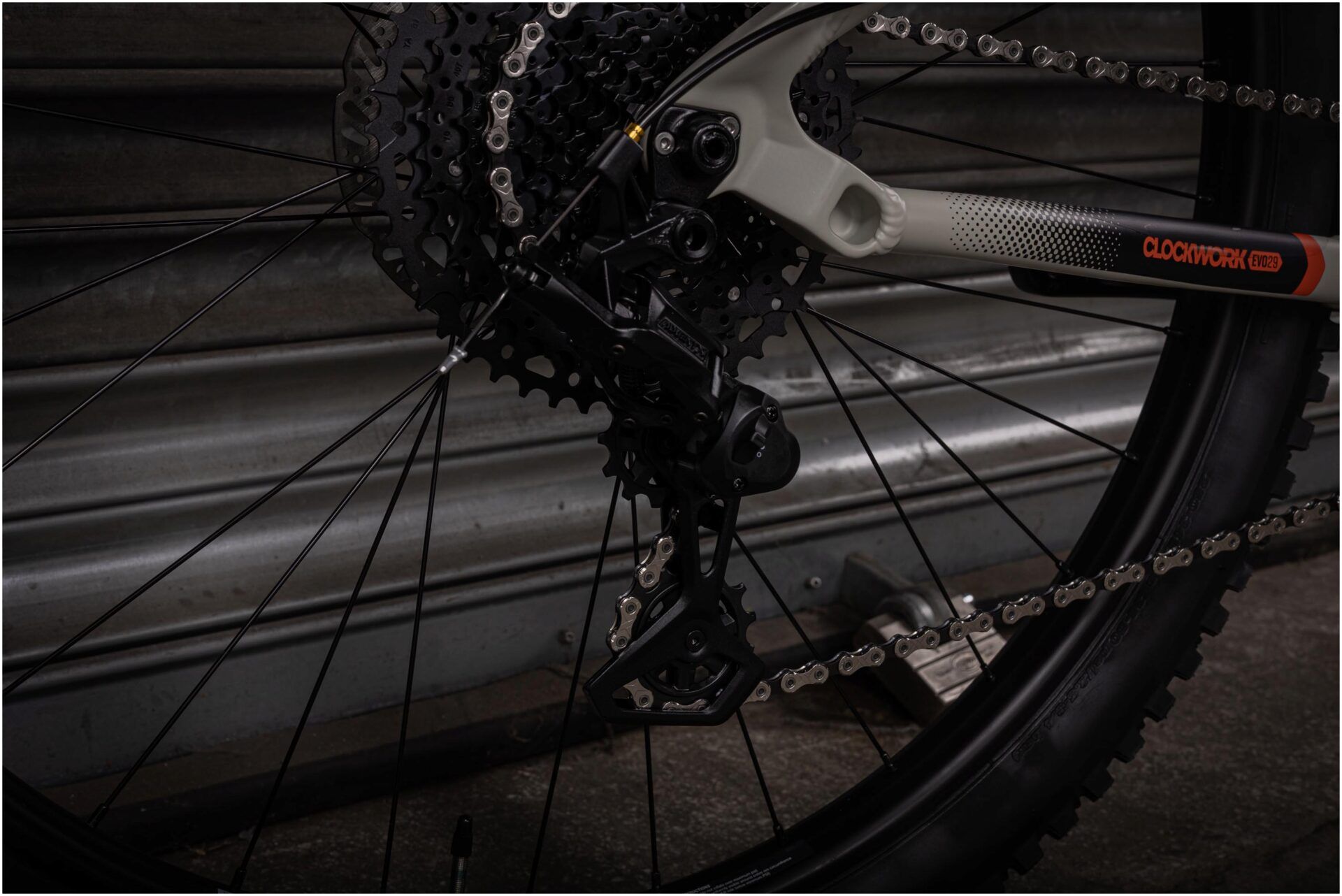

• Rear Derailleur: Microshift Advent X 10-Speed
• Cassette: Microshift G104 11-48T
• Chain: KMC X10

Braking / Shifting

• Shifters: Microshift Trail Pro
• Brakes: Tektro HD-M725 180/160

Wheels

• Wheelset: Strange Hub & WTB ST i30
• Tyres: Maxxis Minion DHF 29x2.5 & DHR II 29x2.4

Finishing Kit

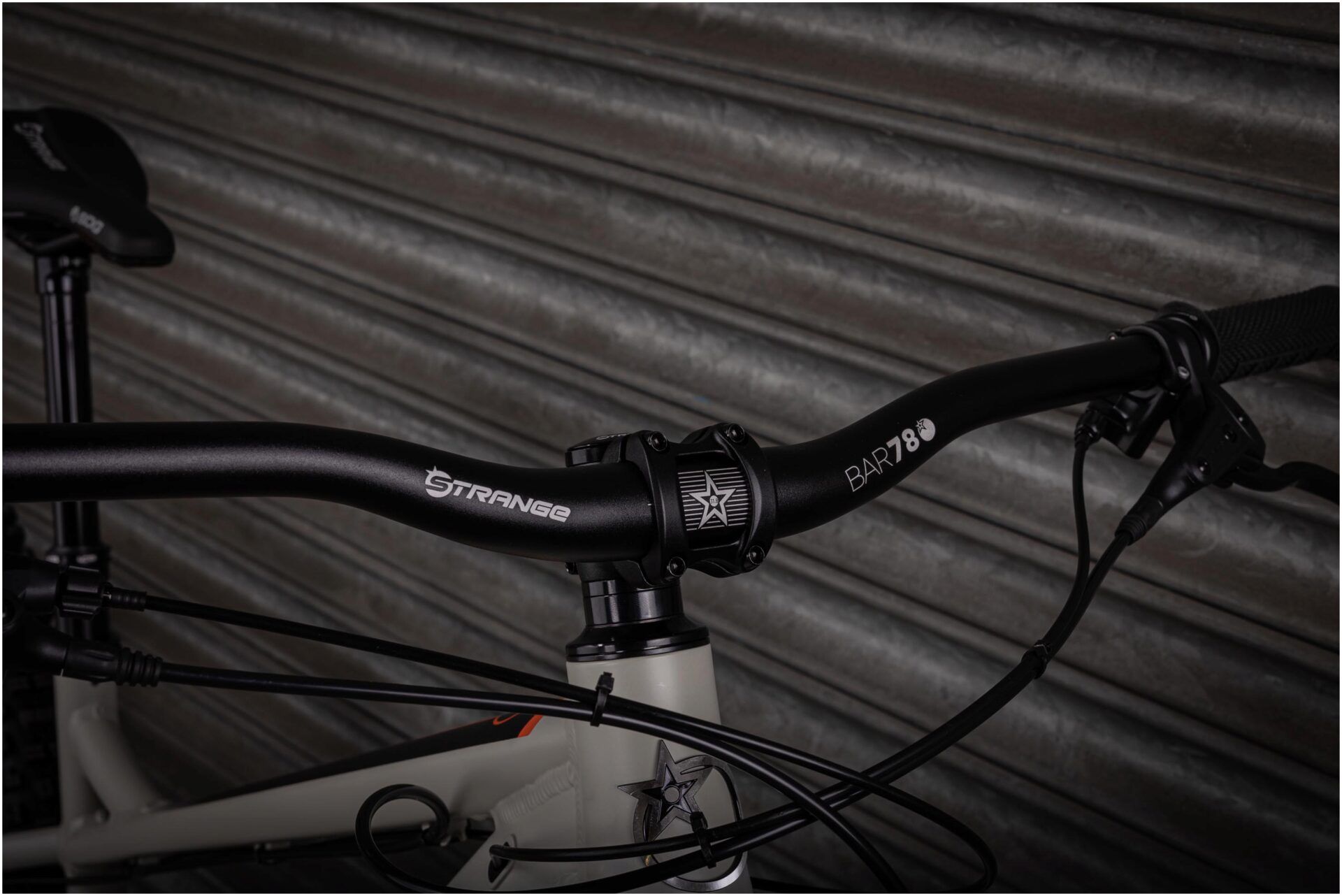

• Handlebars: Strange 1" Rise 780mm
• Grips: Strange Grappler

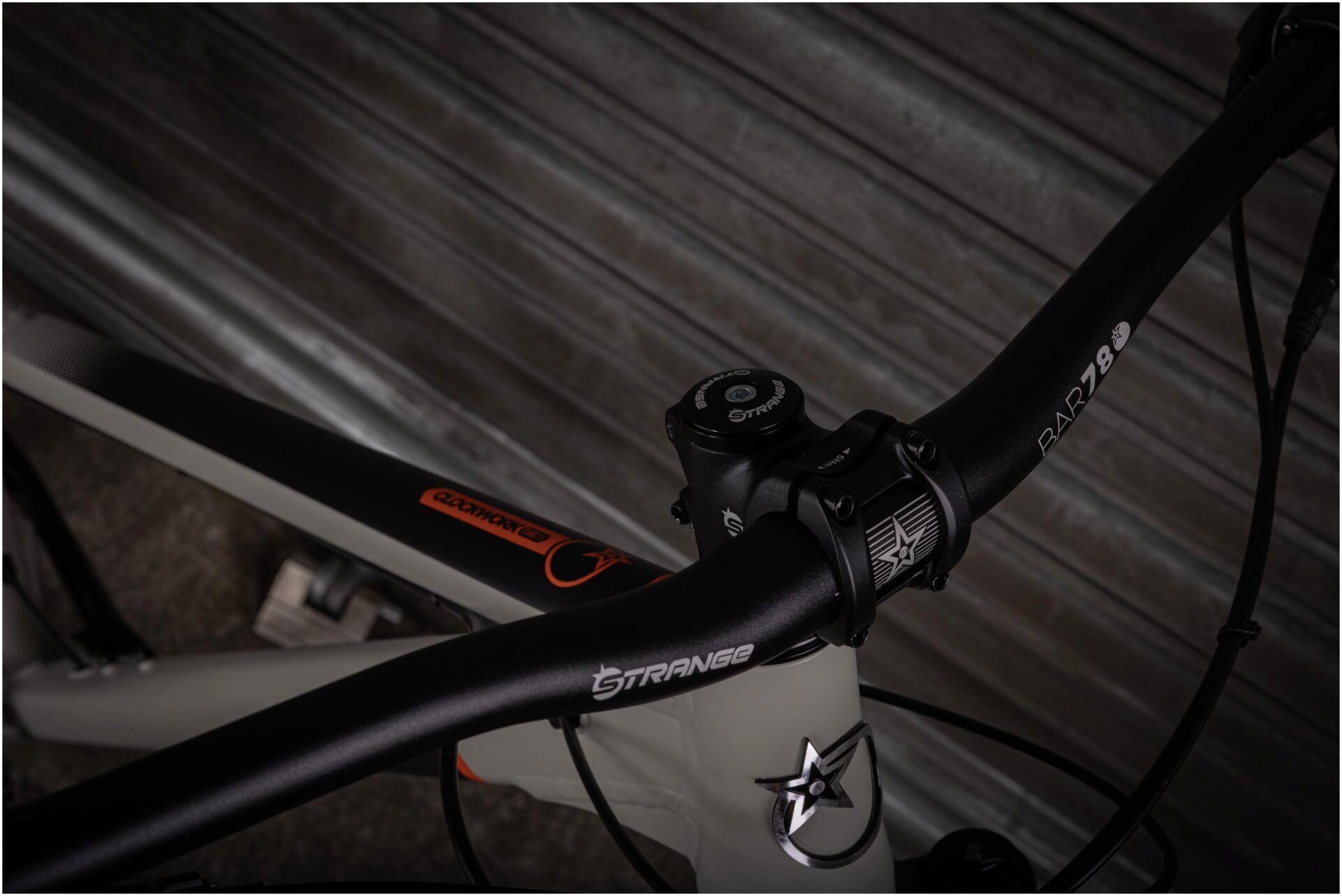

• Stem: Strange Stalk 40mm

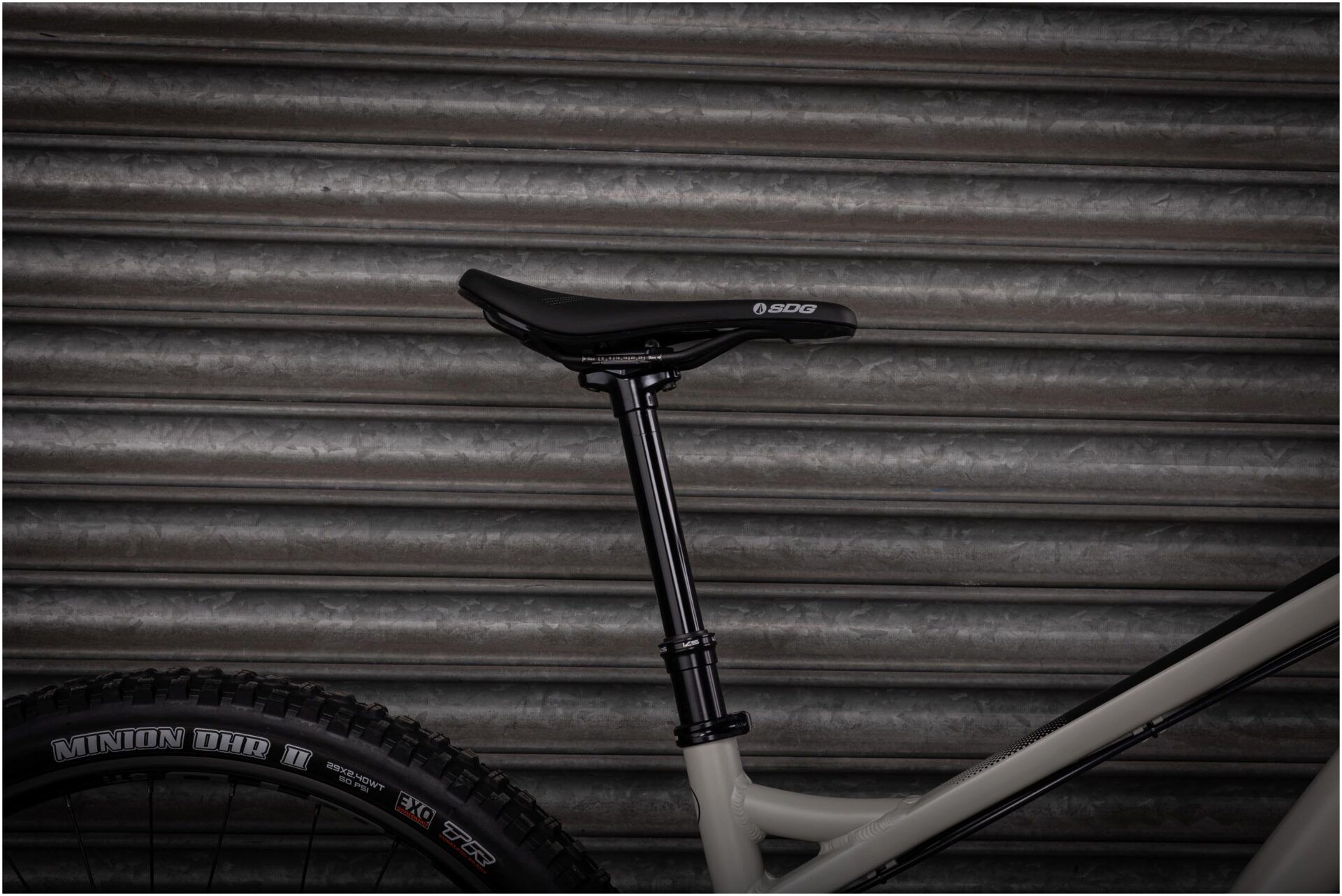

• Seatpost: KS Ragei 150/170mm
• Seat Clamp: Strange Bolted
• Saddle: SDG Bel Air III
