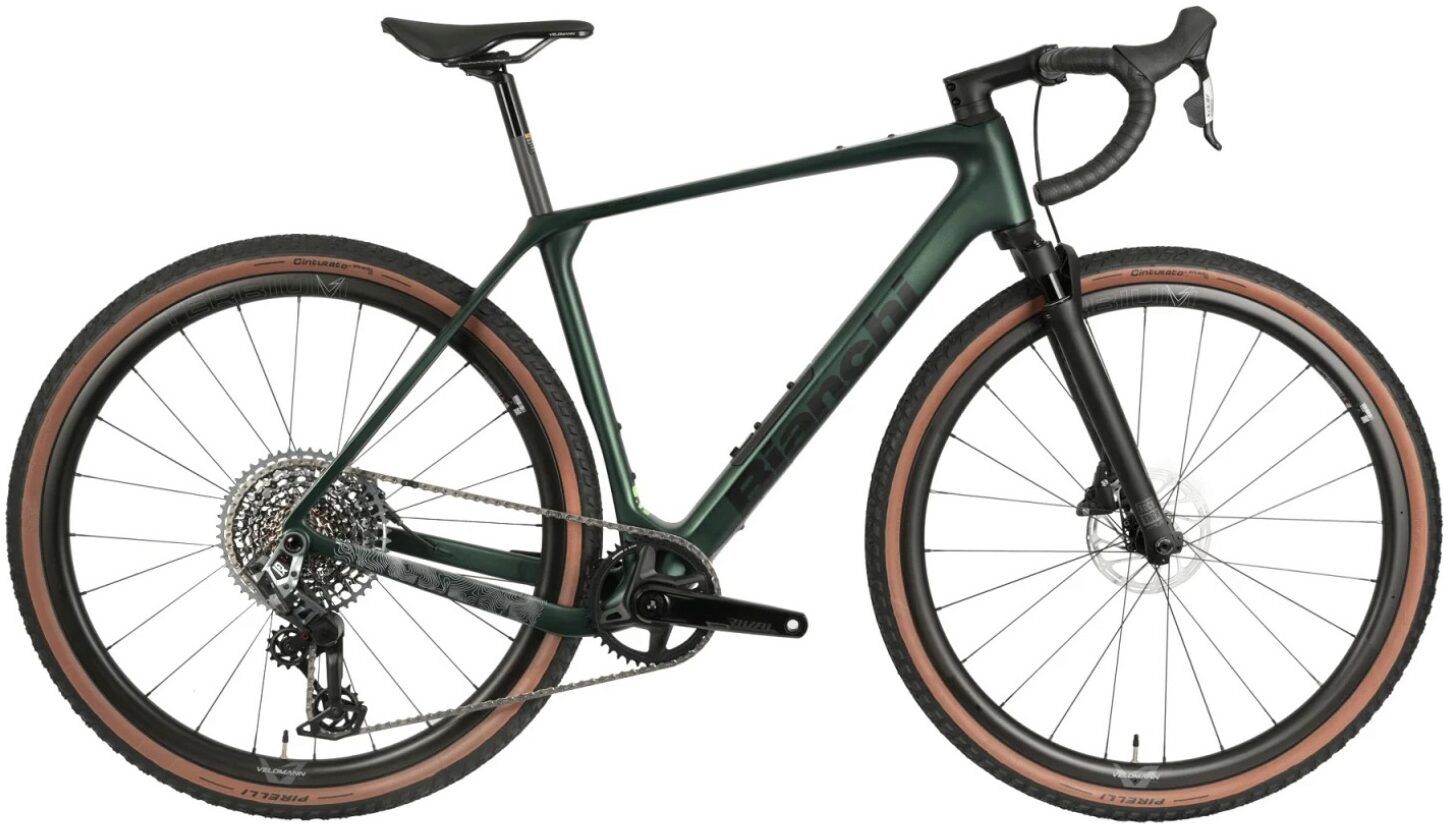

Bianchi Arcadex Pro Apex XPLR AXS 2025 Bike

More Information
Brand	Bianchi
Colour	Forest Green / Graphite Matt
Suitable for	Everyone
Wheel Size	700c

Bianchi was founded in Italy in 1885 making it the oldest bicycle manufacturing company still in existence. They specialise in superlative road racing bikes utilising every extent of their expertise, but have also extended their range to high quality mountain bikes and hybrids. The trademark Celeste paint finish can be spotted a mile away.

Skip to the beginning of the images gallery

Bianchi Arcadex Pro Apex XPLR AXS 2025 Bike

Specification

Frame and Forks

Frame: Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Diameter41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: 38T-44T Minimun Chainline: 45.5mm Tyre Clearance: ETRTO 622-50mm SeatPost O.D: Diameter27.2mm Material: Epoxy - SM Carbon Fiber Composite
Forks: Suspension Fork: RockShox Rudy XPLR Travel: 30mm Disc Brake Specification: Direct Flat Mount 160/180 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100mm Tyre Clearance: ETRTO 622-50mm Steer tube Diameter: Tapered 1 1/8" to 1.5" Fork Rake: 51mm
Headset: Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal Base Plate with seal, Steerer 1.5"(39.78mm)

Drivetrain

Crankset: SRAM Apex D1 Wide, 40T Crank length: 170mm (XS-SM); 172.5mm (MD-LG); 175mm (X-Large)
Bottom Bracket: SRAM Press fit Road Wide 86.5x41
Rear Derailleur: SRAM Apex XPLR AXS, 12-Speed
Sprocket: SRAM XG-1251, 10-44T, 10-11-13-15-17-19-21- 24-28-32-38-44T
Chain: SRAM Apex D1

Braking / Shifting

Shifters: SRAM Apex AXS HRD Shift System
Brakes: SRAM Apex XPLR, Hydraulic disc brake

Wheels

Wheelset: Velomann Terbium, Carbon rim, 30mm profile, 700 x 24,5, XDR body
Tyres: Pirelli Cinturato Gravel M, 700 x 45, 120 TPI

Finishing Kit

Handlebars: Velomann Gravel, Aluminium, diameter 31.8mm, reach 70mm, drop 130mm, flare 16 deg Size: 400mm (XS-SM); 420mm (MD-LG); 440mm (X-Large)
Bar Tape: Bianchi Hexagon tape, 2.5mm thickness, black
Stem: Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 80mm (XS-SM); 90mm (MD); 100mm (LG); 110mm (X-Large)
Seatpost: Velomann Carbon, offset 15mm, diameter 27.2mm length: 300mm (X-Small); 350mm (SM-XL)
Saddle: Velomann Mitora 149 H1, AISI rails, length 250mm, width 149mm
