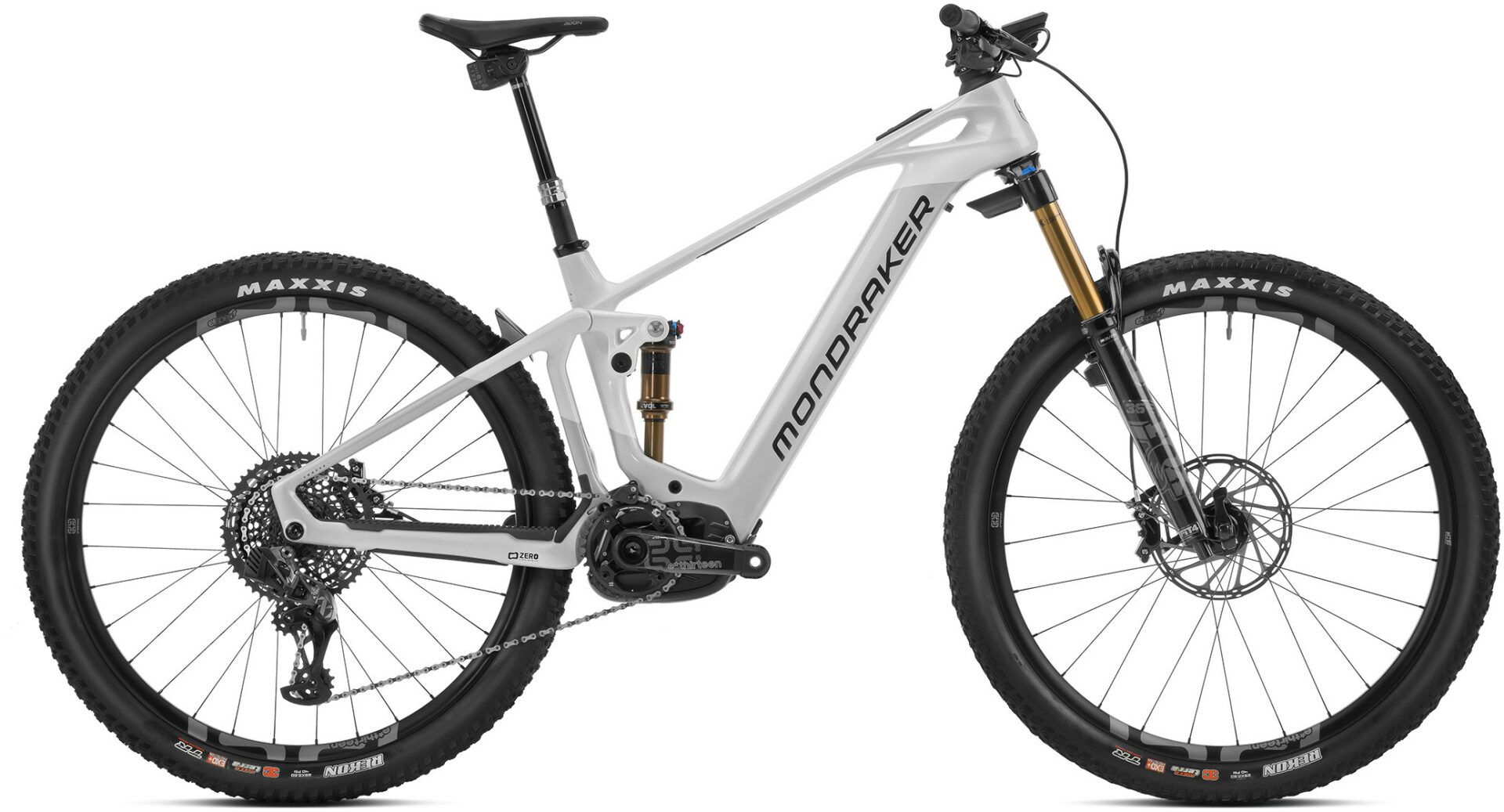

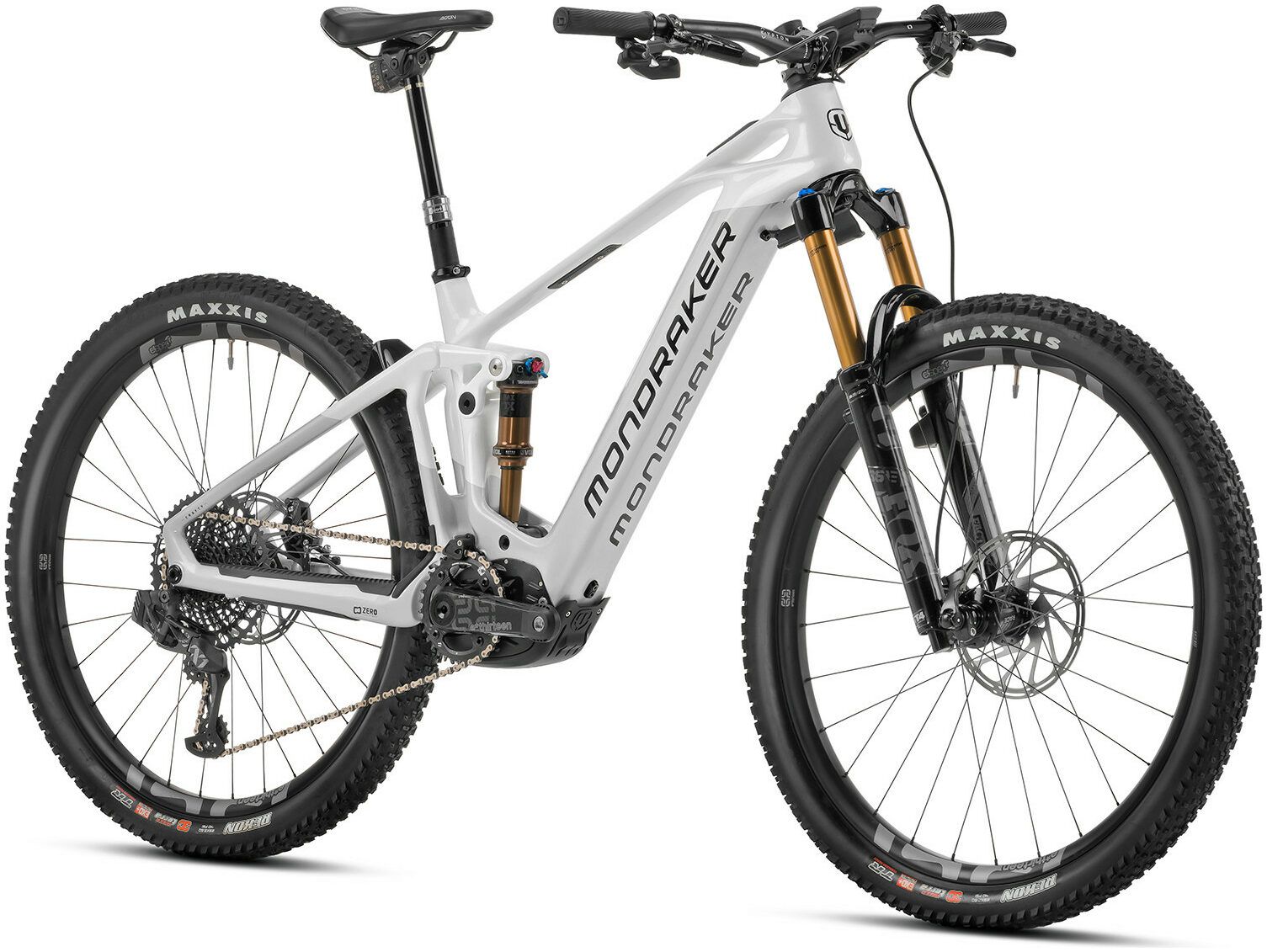

Mondraker Crafty Carbon RR SL 2023 Electric Bike



More Information
BrandMondraker
ColourWhite
Suitable forEveryone
Wheel Size29-inch

Mondraker was founded in 2001 and is a brand dedicated to the design and production of high-performance mountain bikes, offering pioneering developments and advanced technologies in all categories.

Mondraker Crafty Carbon RR SL 2023 Electric Bike
Mondraker Crafty Carbon RR SL 2023 Electric Bike Mondraker Crafty Carbon RR SL 2023 Electric Bike Mondraker Crafty Carbon RR SL 2023 Electric Bike

The Crafty Carbon RR SL is the ebike we designed to unleash passions. It stands out for its lightness and, above all, for its agility and manageability. It goes without saying it’s a benchmark in terms of performance, whether uphill or downhill, and it enjoys class-leading technologies such as Zero Suspension System, Forward Geometry, Stealth Air Full Carbon and Mind… the telemetry system for everyone. All of this, added to the Bosch Smart System with wireless Bluetooth Mini Remote control and integrated System Controller, makes them the most sought after bikes for riders looking for an ebike to take them to the next level. These bikes come with 160mm travel at the front and 150mm at the rear.

Specifications

Frame and Forks

  • Frame: Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12 x 148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. MIND System (EU only)
  • Forks: Fox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15 x 110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
  • Rear Shock: Fox Float DPS Factory Kashima evol LV, 205 x 65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25 x 10mm bottom bushings
  • Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40 x 52 x 7, Internal cable routing

Drivetrain

  • Crankset: E.13 TRS Race carbon ebike, 165mm
  • Rear Derailleur: Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1 x 12 Speed, X-actuation 1:1 with battery cover
  • Cassette: SRAM XG-1295, 10-52 Tooth, 12 Speed
  • Chain: SRAM GX Eagle, 12 Speed, Powerlock

Braking/Shifting

  • Shifters: SRAM Eagle AXS Rocker paddle, 12 Speed
  • Front Brakes: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
  • Rear Brakes: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
  • Brake Levers: Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

Wheels

  • Rims: e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
  • Front Hub: e*thirteen Boost 15 x 110mm, triple-sealed, fully machined aluminum, IS 6 bolts
  • Rear Hub: e*thirteen Boost 12 x 148mm, triple-sealed, fully machined aluminum with /6-degree engagement, IS 6 bolts, XD freehub
  • Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
  • Front Tyre: Maxxis Rekon 29 x 2.35", EXO protection, tubeless ready, 120TPI, folding bead
  • Rear Tyre: Maxxis Rekon 29 x 2.35", EXO protection, tubeless ready, 120TPI, folding bead

Finishing Kit

  • Handlebars: Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
  • Grips: Onoff Desert, 1lock-on, 135mm
  • Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes Small / Medium: 60mm, size Large: 70mm, size X-Large: 80mm
  • Seatpost: Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
  • Saddle: Fizik Antares R7
  • Pedals: Not Included

Electric Power

  • Motor: Bosch Performance Line CX (25km/h) Smart System
  • Battery: Bosch Powertube 750Wh
  • Display: Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
