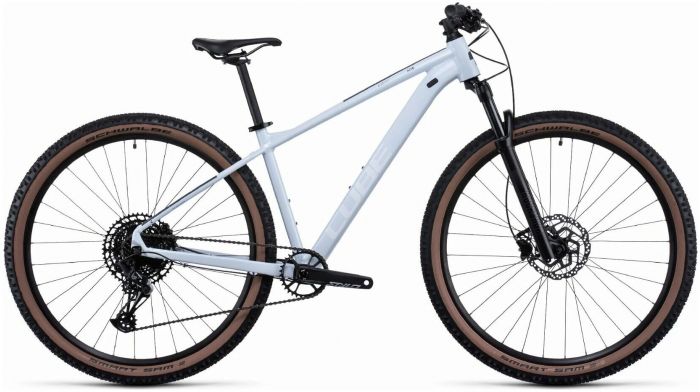

Completely revised for 2022, the brand-new Acid's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with Cube's kickstand mount, and integrated mounting points for ACID mudguards and carrier.
Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
Cube's SizeSplit system has an expanded range too, so however tall you are there'll be an Acid that fits perfectly. And, as your skills increase, there's scope to fit a dropper post upgrade.
Specification
Frame and Forks
- Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- Forks: RockShox Judy Silver TK AIR, 100mm, PopLoc
- Headset: Cube FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Drivetrain
- Crankset: SRAM Stylo Eagle DUB, 32T
- Chainrings: 32T
- Bottom Bracket: SRAM DUB MTB, 73mm BSA
- Rear Derailleur: SRAM NX Eagle, 12-Speed
- Cassette: SRAM PG-1210 Eagle, 11-50T
- Chain: SRAM SX Eagle
Braking / Shifting
- Shifters: SRAM NX Eagle Trigger
- Brakes: Shimano BR-MT200/UR300
- Front Rotor: Shimano 180mm
- Rear Rotor: Shimano 160mm
- Brake Levers: Shimano BR-MT200/UR300
Wheels
- Rims: Cube ZX20, 32H, Disc
- Front Hub: Shimano Deore HB-M6000, QR, Centerlock
- Rear Hub: Shimano Deore FH-M6000 ,QR, Centerlock
- Front Tyre: Schwalbe Smart Sam, Active, 2.25
- Rear Tyre: Schwalbe Smart Sam, Active, 2.25
Finishing Kit
- Handlebars: Cube Rise Trail Bar, 680mm
- Grips: ACID React
- Stem: Cube Performance Stem SL, 31.8mm
- Seatpost: Cube Performance Post, 27.2mm
- Seat Clamp: Cube Varioclose, 31.8mm
- Saddle: Natural Fit Venec
- Pedals: Not Included
More Info
- Sizes: 27.5: X-Small (14"), Small (16") // 29: M (18"), Large (20"), X-Large (22"), XXL (24")
